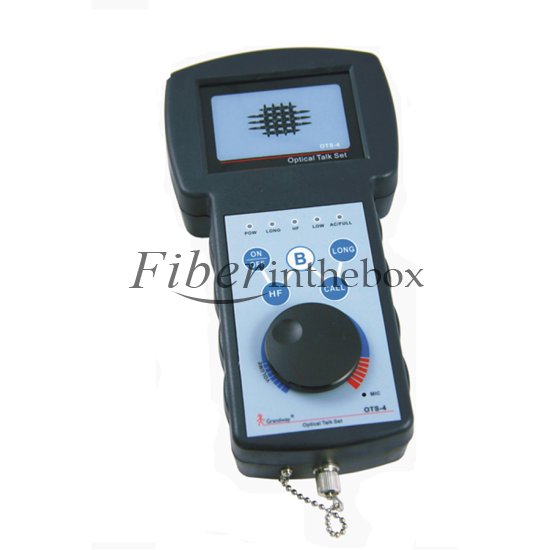

Optical Talk Sets FITB-29

SKU#:FITB42852GLT
Model#: FITB-29
Out of stock
Description
Two pairs of OTS-4 suppo tri-pa y communication via clip-on coupler device
Hands-free (HF) speaker provides users with convenient operation
Maximum dynamic range 50dB@1550nm for long distance communication



Features
Energy-saving design, long-time operation
Can be used as a steady laser source
A iculate voice, low background noise
Judgmatical calling function
32 steps volume control
Low-power alarm
Maximum dynamic range 50dB for long distance communication



Standard Accessories
Main uints (unit A and unit B), FC/PC connector, Carrying Bag, Manual, Battery, Headset, AC/DC Adaptor



Fiber optic talk set carry full-duplex communication with high quality voice connection without being affected by distance, it is widely used in operations of optical fiber installation, testing and maintenance works. If you need this Optical Talk Sets FS-29 with Red Light Source 60KM in a large quantity, welcome to contact us. We will give you a special discount.

Specifications



FS-29

Wavelength

A:1310nm, B:1550nm

(unit A works at 1310nm, unit B works at 1550nm)

Telecommunication system

Full duplex communication

Fiber Type

SM & MM (the dynamic range will shrink 20dB for MM fiber)

Spectral Width

<15nm

Adaptor type

FC/PC

Dynamic Range

50dB

Output Power

-3dBm

Power Supply

Rechargeable build-in Ni-MH Battery &. AC/DC adaptor

Operating Hours

40 hours (standard)

Tri-party communication

YES

Hands-free speaker

YES

Dimension

220L*110W*45H

Operating Temperature

-10~+50cels

Storage Temperature

-20~+70cels

Operating Humidity

<90% (Non-condensing)

Net weight

550g (including battery)


@ 1550nm, CW, 23±3 celsius, Relative Humidity ≤70%, with FC connector
