Features
1310/1550nm dual-wavelength testing
Easy to operate, completely operating the equipment by the touch-screen panel or keyboard button
3.5-inch TFT LCD with brightness adjustment suppo , suitable for high luminance environment or
night
Auto-sleep function to save power
Rechargeable NI-MH battery-powered, low-voltage protection and continuous working time up to 8
hours
Hardware power switch, stopping electrical energy loss and ensuring the battery works longer
Hotkey for all impo ant tests, ensuring higher test efficiency
Visible light source, facilitating to inspect fiber break
Complete PC analysis software for you to quickly and efficiently generate a professional OTDR
Specifications
Attenuation Resolution (dB): 0.05
Distance Measurement Accuracy: ±(1 m + 5×10-5×Distance (m)+ sampling space)
Attenuation Measurement Linearity (dB): 0.03dB
Sampling Resolution (cm): 25
Sampling Points: 16000
Optical Connector: FC/PC
Wavelength (nm): 1310/1550 ± 20
Dynamic Range (dB): 28/26
Attenuation Dead Zone (m): 8
Event Dead Zone (m): 4
Pulse Width: 5ns/20ns/40ns/80ns/160ns/320ns/640ns/1.28us/2.56us
Distance Range (Km): 1/5/10/30/60/100
Display: 3.5 TFT LCD touch screen
Memory Capacity: 150 test traces
Connection: With PC USB
Power Supply: 15V DC@1.2A
Weight (Kg): 1
Dimensions (mm): 220 ×110 ×70
Operating Temperature (°C): 0 ~ +50
Storage Temperature (°C): -20 ~ +60
Relative Humidity: 95%
VFL
Wavelength (nm) 650
Output Power (dBm) ≥-3
Measurement Distance (Km) 5

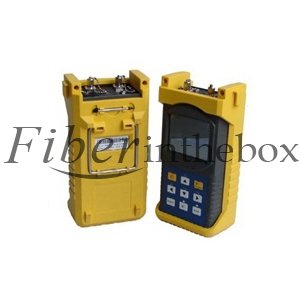

Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the Handheld OTDR FS790 1310/1550m, 26/28dB, we provide one year warranty for it. If you have any problems or special requirement of OTDR, please feel free to contact us. We will try our best to provide you the best service.
