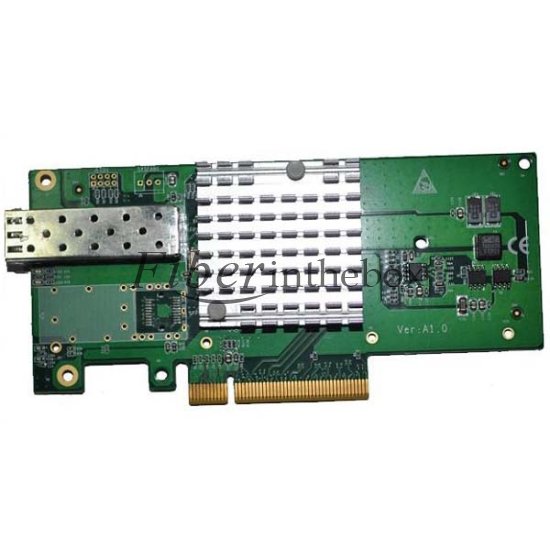

PCI-E 10G Single SFP+ Port Ethernet Network Fiber Card Adapter

SKU#:FITB94922RVB
Model#: FS10GF182599EN
Out of stock

PCI-E 10G Single SFP+ Po Ethernet Network Fiber Card Adapter


Description:

Fiberinthebox’s SFP+ 10 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances. The adapters offer simple integration into any PCI Express X8 to 10Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation. Fbierstore ’s SFP+ 10 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high powered networking applications and environments within high performance servers.


Key Features:

SFP+ 10 Gigabit Ethernet:

10 Gigabit Ethernet Adapter with SFP cage suppo : -XR: Copper 10SFP+Cu (Passive Direct Attach Cable): Compliant with the SFP+ MSA SFF-8431 specification Up to 10 meters -SR: Fiber 10 Gigabit Ethernet 10GBASE-SR: 10BASE-SR with 10Gigabit 850nM Small form Factor Pluggable (SFP+) -LR: Fiber 10 Gigabit Ethernet 10GBASE-LR: 10BASE-LR with 10Gigabit 1310nM Small form Factor Pluggable (SFP+) -SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX / 10GBASE-SR: 1000BASE-SX with 1G 850nM Small form Factor Pluggable (SFP+) 10GBASE-SR with 10Gigabit 850nM Small form Factor Pluggable (SFP+) -LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR: 1000BASE-LX with 1G 1310nM Small form Factor Pluggable (SFP+) 10GBASE-LR with 10Gigabit 1310nM Small form Factor Pluggable (SFP+) -SR: Fiber 10 Gigabit Ethernet 10GBASE-SR: 10 Gigabit Fiber Ethernet po suppo s 10GBASE-SR (850nM LAN PHY) 10Gigabit 850nM Small form Factor Pluggable (SFP+) -LR: Fiber 10 Gigabit Ethernet 10GBASE-LR: 10 Gigabit Fiber Ethernet po suppo s 10GBASE-LR (1310nM LAN PHY) 10Gigabit 1310nM Small form Factor Pluggable (SFP+) -SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX / 10GBASE-SR: 10 Gigabit Fiber Ethernet po suppo s 10GBASE-SR (850nM LAN PHY) 1Gigabit Fiber Ethernet po suppo s 1000BASE-SX (850nM LAN PHY) 1/10Gigabit 850nM Small form Factor Pluggable (SFP+) -LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR: 10 Gigabit Fiber Ethernet po suppo s 10GBASE-LR (1310nM LAN PHY) 1Gigabit Fiber Ethernet po suppo s 1000BASE-LX (1310nM LAN PHY) 1/10Gigabit 1310nM Small form Factor Pluggable (SFP+)

Host Interface:

PCI Express X8 lanes Suppo PCI Express Base Specification 2.0 (5GT/s) Low-Profile Adapter Low power SFP+ cage LC

Performance Features:

IPV4 and IPV6 Suppo s for IP/ TCP and IP/UDP Receive Checksum offload Fragmented UDP checksum offload for Packet Reassembly CPU utilization- the 82599 suppo s reduction in CPU utilization, mainly by suppo ing Receive Side Coalescing (RSC). Suppo for 16 vi ual machine Device Queues ( VMDq) per po Suppo Direct Cache Access ( DCA) Advanced memory architecture reduces latency by preceding TSO packets. A TSO packet may be interleaved with other packets going to the wire. Minimized device I/O intterupts using MSI and MSI-X Offload of TCP / IP / UDP checksum calculation and TCP segmentation Large on chip receive packet buffer (512 KB) Large on chip transmit packet buffer ( 160KB) Suppo s the VPD (Vital Product Data) capability defined in the PCI specification ver. 3.0 Time sync- IEEE1588- Precision Time Protocol (PTP) Suppo s the BCN (Backward Congestion Notification) protocol in addition to the EEDC functionality

LAN Features:

IEEE 802.x flow control suppo IEEE 802.1q VLAN tagging suppo IEEE 802.1p layer 2 priority encoding Jumbo Frame (up to 15.5KB) Link Aggregation and Load Balancing. RFC2819 RMON MIB statistics TCP Segmentation Offload Up to 256KB Ipv6 Suppo for IP/TCP Receive Checksum Offload LEDs indicator for link/Activity SFP+ 10 Gigabit Ethernet Technical Specifications Adapters: IEEE 802.x flow control suppo IEEE 802.q VLAN tagging suppo IEEE 802.1p layer 2 priority encoding Jumbo Frame (up to 16KB) Link Aggregation and Load Balancing RFC2819 RMON MIB statistics TCP Segmentation Offload Up to 256KB Ipv6 Suppo for IP/TCP Receive Checksum Offload DDP Offload LEDs indicator for link/Activity

Safety characteristics:

IEEE P802.1AE LinkSec specifications.It incorporates an inline data packet encryption unit, suppo data packet one one privacy and integrity check.Data transmission path including encryption and signature engine.Receive data path includes a decryption and integrity checker.
IPsec contained a ce ain amount of flow provide IPsec contained for each TX and RX, as many as 1024 Security Association (SA) AH and ESP protocol, used for encryption and authentication AES-128-GMAC and AES-GCM encryption engine transmission mode package

Specifications

Technical :

SFP+ 10 Gigabit Ethernet Technical  Adapters:

SFP+ (Small Form Factor Pluggable) supports:

SFI interfaces supports 10GBase-R PCS and 10
Gigabit PMA in order to connect with SFP+ to 10GBase-SR / / 1000Base-SX
/ 10GBase-LR and SFP+ Direct Attach

10GBase-SR SFP+:
IEEE Standard / Network
topology:

Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY).

10GBase-SR SFP+:
Data Transfer Rate :

10.3125GBd

10GBase-SR SFP+:
Cables and Operating
distance Up to:

62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m

10GBase-LR SFP+:
IEEE Standard / Network
topology:

Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)

10GBase-LR SFP+:
Data Transfer Rate:

10.3125GBd

10GBase-LR SFP+:
Cables and Operating distance
Up to:

Single-Mode: 10000m at 9um

10GSFP+Cu :
IEEE Standard / Network
topology:

Copper 10Gigabit Ethernet, 10GSFP+Cu (Direct Attach)

1000Base-SX / 10GBase-SR SFP+:
IEEE Standard / Network
topology:

Fiber Gigabit Ethernet, 1000Base-SX (850nM LAN PHY)
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)

1000Base-SX / 10GBase-SR SFP+:
Data Transfer Rate :

10.3125GBd / 1.25GBd

10000Base-SX / 10GBase-SR SFP+:
Cables and Operating distance Up to:

10000Base-SX:
62.5um, 160MHz/Km 220m
62.5um, (OM1)200MHz/Km 275m
50um, 400MHz/Km 500m
50um, (OM2)500 MHz/Km 550m
50um, (OM3)2000MHz/Km >550m
10GBase-SR:
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m

1000Base-LX / 10GBase-LR SFP+:
IEEE Standard / Network
topology:

Fiber Gigabit Ethernet, 1000Base-LX (1310nM LAN PHY)
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY).

1000Base-LX / 10GBase-LR
SFP+:
Data Transfer Rate :

10.3125GBd / 1.25GBd

1000Base-LX / 10GBase-LR
SFP+:
Cables and Operating distance
Up to:

10000Base-LX:
Single-Mode: 5000m at 9um
10GBase-LR:
Single-Mode: 10000m at 9um

-SR: Fiber 10GBASE-SR Ethernet Technical :

Output Transmit Power:

Typical: -2.33 dBm
Minimum: -2.8 dBm

Optical Receive Sensitivity:

Typical: -13.45 dBm
Maximum: -11.1 dBm

Maximum Input Power:

Maximum: +0.5dBm

-LR: Fiber 10GBASE-LR Ethernet Technical :

Output Transmit Power:

Typical: -2.75 dBm
Minimum: -8.2 dBm

Optical Receive Sensitivity:

Typical: -14.65 dBm
Maximum: -12.6 dBm

Maximum Input Power:

Maximum: +0.5dBm

-SRD: Fiber 1000BASE-SX / 10GBASE-SR Technical :

Optical Output Power (1G):

Minimum: -9.5 dBm

Optical Receive Sensitivity (1G):

Maximum: -17 dBm

Maximum Input Power (1G):

Maximum: +0.5dBm

Output Transmit Power (10G):

Minimum: -5 dBm

Optical Receive Sensitivity(10G):

Maximum: -11.1 dBm

Maximum Input Power (10G):

Maximum: +0.5dBm

-LRD: Fiber 1000BASE-LX / 10GBASE-LR Technical :

Optical Output Power (1G):

Minimum: -11 dBm

Optical Receive Sensitivity (1G)

Maximum: -19 dBm

Maximum Input Power (1G):

Maximum: +0.5dBm

Output Transmit Power (10G):

Minimum: -5.2 dBm
Typical:  -1.35dBm

Optical Receive Sensitivity(10G):

Maximum: -12.5 dBm
Typical    : -24 dBm

Maximum Input Power (10G):

Maximum: +0.5dBm

Operating Systems Support

Operating system support:

Windows
Linux
FreeBSD
VMware

General Technical

Interface Standard:

PCI-Express Base  Revision 2.0 (5GT/s)

Board Size:

Low profile add-in card: 167.65mm X 68.91mm(6.60”X 2.713”)

PCI Express Card Type:

X8 Lane

PCI Express Voltage:

+12V +- 8%

PCI Connector:

X8 Lane

Controller: :

Intel 82599EN

Holder:

Metal Bracket

weight

150(5.29oz)

Operating Humidity:

0%–90%, non-condensing

Operating Temperature:

0°C – 50°C (32°F - 122°F)

Storage:

-40°C–65°C (-40°F–149°F)

EMC Certifications:

FCC Part 15, Subpart B Class  B
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Amendments A1: 2000; A2: 2003  Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003   Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads  CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per

MTBF*:

66 years
The prediction was performed for 40°C Ambient temperature, GB Environmental condition.  The reliability prediction was performed in accordance with Telcordia SR-332

LEDs

LEDs:

(2) LEDs per port
Link /ACT : Turns on link , blinks on activity (green)  Link: Turns on link any speed (green)

LEDs location:

LED is located on the PCB, visible via holes in the metal bracket holder

Connectors:

(1) SFP+ cage   LC

Order Information

P/N

Description

Notes

FS10G82599EN-XR

Single Port SFP+ 10 Gigabit Ethernet PCI Express Server Adapter

X8 Gen2 , Based on Intel 82599EN,Low-profile, Support Direct Attached Copper cable,  Support FS10G82599EN SFP+ approved transceiver,
 RoHS compliant,

FS10G82599EN-SR

Single Port Fiber (SR) 10 Gigabit Ethernet PCI Express Server Adapter

X8 Gen2, Based on Intel 82599EN, Low-profile, on board support for Fiber SR,
RoHS compliant

FS10G82599EN-LR

Single Port Fiber (LR) 10 Gigabit Ethernet PCI Express Server Adapter

X8 Gen2, Based on Intel 82599EN, Low-profile, on board support for Fiber LR,
RoHS compliant

FS10G82599EN-SRD

Single Port Fiber (SX/SR) 1/10 Gigabit Ethernet PCI Express Server Adapter

X8 Gen2, Based on Intel 82599EN, Low-profile, on board support for Fiber SX/SR,
RoHS compliant

FS10G82599EN-LRD

Single Port Fiber (SX/SR) 1/10 Gigabit Ethernet PCI Express Server Adapter

X8 Gen2, Based on Intel 82599EN,Low-profile,on board support for Fiber LX/LR,
RoHS compliant

Model P/N -LP /

-LP: Assemble Low Profile Metal Bracket
*Advanced features may required driver development.  details the 82599EN chips capabilities
1V0
