Introduction

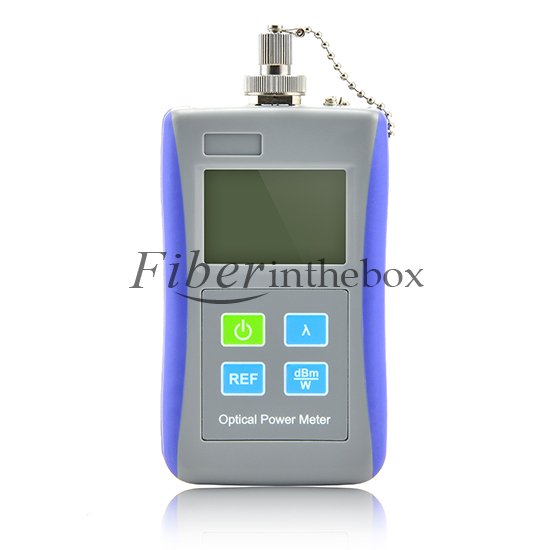

BD503 Handheld Optical Power Meter is a self-developed test instrument which is widely used for installation, operation and maintenance of fiber-optic network. It features sma appearance, backlight, auto-shutdown and widely dynamic range, good testing precision and universal optical connector for FC/SC/ST.
Features
• High sensitivity, large dynamic range
• Universal connector interface FC/SC/ST
• Quick response, without warm-up and reducing testing time
• Low-voltage display function
• Optional auto-shutdown
• Automatic calibration function
• The relative ratio test
• Large LCD display and backlight
• Universal connector interface FC/SC/ST
• Quick response, without warm-up and reducing testing time
• Low-voltage display function
• Optional auto-shutdown
• Automatic calibration function
• The relative ratio test
• Large LCD display and backlight
Applications
• Fiber cable Telecom installation
• Fiber optic communication maintenance
• Fiber Optic R&D and Training
• Optical fiber cabling system
• Fiber optic communication maintenance
• Fiber Optic R&D and Training
• Optical fiber cabling system
Kind Note
Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. If you need this brand new BD503A handheld optical power meter at a large quantity, please feel free to contact us, we will provide you a special discount.
Specifications
| Type | BD503A | BD503B |
| Wavelength (nm) | 800~1650 | |
| Detector | InGaAs | |
| Optical Connector | FC, SC, ST/ Universal 2.5mm adaptor | |
| Measurement Range (dBm) | -70~+10 | -50~+26 |
| Uncertainty | ±5% | |
| Standard Wavelength (nm) | 850/ 1300/ 1310/ 1490/ 1550/ 1625 | |
| Resolution (dB) | 0.01 | |
| Power Supply | 3pcs AAA 1.5V batteries | |
| working time (h) | 120 | |
| Operating Temperature (°C) | -10~+50 | |
| Storage Temperature (°C) | -20~+70 | |
| Automatic shutdown (min) | 10 | |
| Dimension (mm) | 125 (L)*65 (W)*29 (H) | |
| Weight (g) | 160 (include batteries) | |
