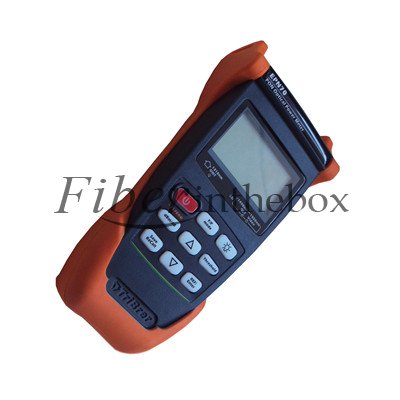

EPN70 PON Optical Power Meter
Test ONU 1310nm burst signal and OLT 1490nm & 1550nm
Data storage and manual calibration
Threshold set
Data storage and manual calibration
Threshold set
Specifications
| EPN70 | |
| Measurement range | 1310 nm: +10 ~ - 35 dBm |
| 1490 nm: +10 ~ - 50 dBm | |
| 1550 nm: +25 ~ - 45 dBm | |
| ORL | APC: 55 dB; UPC: 35 dB |
| Pass through inse ion loss | < 1.5 dB |
| Accuracy | ± 0.5dB (burst signal) |
| ± 0.2dB | |
| Threshold sets | 10 |
| Data Storage | 100 |
| Connector | SC/PC (can customise other connectors) |
| Auto Power Off | No operation in 10 minutes (can be cancelled), Low battery energy |
| Battery Charge | Yes |
| Operate Time | Above 36 hours |
| Storage Temperature | -20 -- +60 °C, 90%RH |
| Operating Temperature | -10 -- +50 °C, 90%RH |
| Power Supply | 3 * AA batteries or AC/DC adapter |
| Weight | About 450g |
| Size | 190mm * 90mm *40mm |
Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new EPN70 PON power meter at a large quantity.
