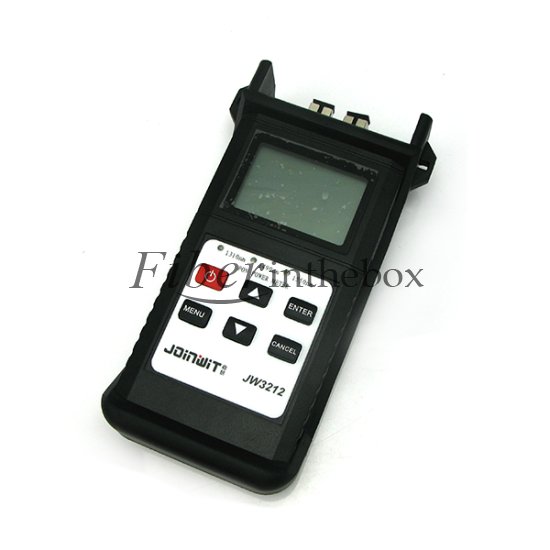

Description
This new PON power meter aims at the FTTx application and maintenance which can be used to test and estimate the signals of the voice, data and video at the same time. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Features
Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
Used in Burst mode measurement of 1310nm upstream
USB communication po enables data transfer to a PC
1000 measurement items can be saved in JW3212 PON power meter or computer for data review.
JW3212 PON power meter offers up to 10 different threshold sets in total; Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
User self-calibration can be performed and "Factory Default" mode can be retrieved in computer through the software.
PON SC standard connector, easy to test, other type connector po can be required on customer requests.
Backlight LCD display suppo s night operation.
10 minutes Auto-off function can be activated or deactivated with keypad operation.
Used in Burst mode measurement of 1310nm upstream
USB communication po enables data transfer to a PC
1000 measurement items can be saved in JW3212 PON power meter or computer for data review.
JW3212 PON power meter offers up to 10 different threshold sets in total; Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
User self-calibration can be performed and "Factory Default" mode can be retrieved in computer through the software.
PON SC standard connector, easy to test, other type connector po can be required on customer requests.
Backlight LCD display suppo s night operation.
10 minutes Auto-off function can be activated or deactivated with keypad operation.
Standard Packages
| Model | Includes |
| JW3212 | JW3212 PON Power Meter, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor,User Manual and Cotton Swabs, USB Cable, Rigid carrying case can be optional. |
Kind Note
We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.If you need more than one connector, please contact our sales at sales@fiberinthebox.com for more details because the price would be different
Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new JW3212 power meter at a large quantity.
View Detailshttps://www.Fiberinthebox.com
Specifications
| Item | JW3212 |
| 1310nm upstream measurement | |
| Pass zone (nm) | 1260~1360 |
| Isolation @1490/1550nm(dB) | >40 |
| Measurement Range (dBm) | -40~+10 |
| 1490nm downstream measurement | |
| Pass zone (nm) | 1470~1505 |
| Isolation @1550nm(dB) | >30 |
| Isolation @1310nm(dB) | >40 |
| Measurement Range (dBm) | -40~+10 |
| 1550nm downstream measurement | |
| Pass zone (nm) | 1535~1570 |
| Isolation @1490nm(dB) | >40 |
| Isolation @1310nm(dB) | >40 |
| Measurement Range (dBm) | -40~+20 |
| Measurement Accuracy | |
| Connatural Uncertainty (dB) | ±0.5 |
| Linearity (dB) | ±0.1 |
| Passing through insertion Loss (dB) | <1.5 |
| General Information | |
| Display | Graphic display, Resolution is : 128*64 |
| Measurement Unit | DBm, dB, mW, and uW |
| Resolution | 0.01dB |
| Fiber Type | 9/125um |
| Input Power Range | DC 6.5V~8.5V |
| Rechargeable Battery | 7.4V |
| AC adaptor | 8.4V |
| Operating Temperature(℃) | -10~+60 |
| Storage Temperature(℃) | -25~+70 |
| Dimensions | 210X115X55 |
