Includes all the outstanding functions of the handheld stable light source(JW3104)
Perfect combination to make your fiber measurements more convenient
Different light sources and power meters can be built into JW3204
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements

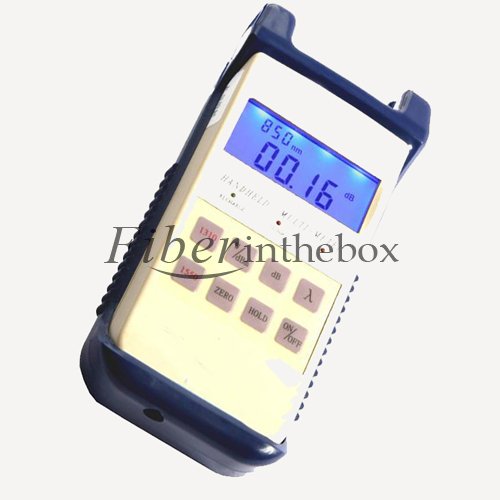

The Fiber Optic Multimeter is an integrated unit of power meter & light source, it can satisfy the user by providing a choice of greater convenience and more advantages. Fiberinthebox can provide all this kind of products with one year warranty. If you are interested in the JW3204 Handheld Optical Multi Meter at a large quantity, welcome to contact us.
|
Type |
JW3204A |
JW3204B |
JW3204C |
JW3204D |
|
Optical Power Meter Module |
||||
|
Detector Type |
IngaAs |
|||
|
Measurement Range(dBm) |
-70~+3 |
-60~+10 |
-30~+20 |
-20~+30 |
|
Uncertainty |
5% |
|||
|
Calibrated wavelengths(nm) |
850,980,1310,1550nm |
|||
|
Resolution(dB) |
0.01 |
|||
|
Optical Connector |
FC(interchangeable SC,ST) |
|||
|
Optical Light Source Module |
||||
|
Emitter Type |
FP-LD |
|||
|
Wavelengths |
1310/1550(other wavelengths can be optional) |
|||
|
Output Power(dBm) |
-7 |
|||
|
Spectral Width |
≤10nm |
|||
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|||
|
Optical Connector |
FC/ PC |
|||
|
General of Multimeter |
||||
|
Power Supply |
Rechargeable Battery + Power Supply Adapter |
|||
|
Battery Operating Time |
≥4 hours(Both Power Meter and Light Source are working) ≥28hours(Only Power Meter is working) |
|||
|
Auto-off time |
10mins |
|||
|
Operating Temperature(°C) |
--25~+70 |
|||
|
Storage Temperature(°C) |
±0.05dB/15mins; ±0.1dB/ 8hours |
|||
|
Dimension(mm) |
180X85X30 |
|||
