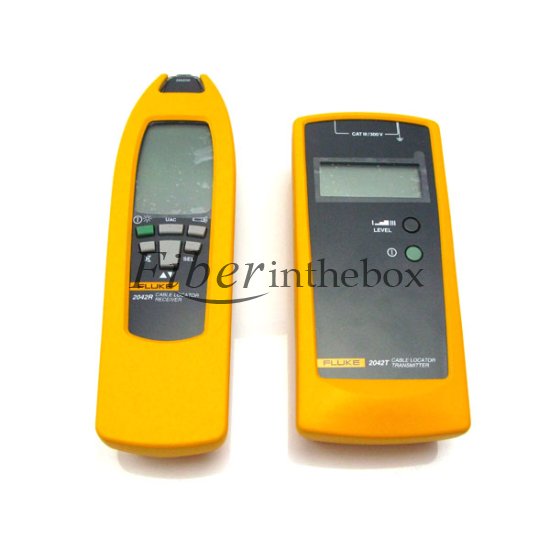

New Fluke 2042 Cable Locator Tester Meter

The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and sho -circuits in cables and electrical floor heating systems.
It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.



For all applications (live or dead cables) without additional instruments
Set includes a transmitter and a receiver
Proven digitally coded sender signal guarantees clear signal identification
Transmitter with LC-display for transmitting level, transmitting code and external voltage
Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication
Automatic or manual adjustment of receiving signal sensitivity
Acoustical receiving signal switchable
Auto-Power-Off
Additional torch lamp function for working in dark environments
Additional transmitters are available for extension of to distinguish between several signals

Fiberinthebox is specializing in manufacturing optical transceivers and subsystem for optical fiberal communications in Metro Networks, Access Networks, Fiber Channel, and FTTX, etc. That means, we are specializing in supplying optical fiber components and network equipment. And if you are interested in this Fluke 2042 Cable Locator Tester Meter and want to know more details, welcome to contact us. We will provide you a special discount at a large quantity.



Fluke 2042
Voltage measurement range	Transmitter: 12 V, 50 V, 120 V, 230 V, 400 V
Frequency range	Transmitter: 0...60 Hz
Output signal	Transmitter: 125 kHz
Voltage	Transmitter: Up to 400 V AC/DC
Tracing depth cable location	Receiver: 0...2.5 m wall/underground cables
Main voltage detection	Receiver: 0...0.4 m
Environmental
Operating Temperature	Transmitter:	0 to 40°C
	Receiver:	0 to 40°C
Storage Temperature	Transmitter:	-20°C to +60°C
	Receiver:	-20°C to +60°C
Humidity (Without Condensation)	Transmitter:	Max. 80% relative
	Receiver:	Max. 80% relative
Operating Altitude	Transmitter:	Up to 2000 m
	Receiver:	Up to 2000 m
Safety
Electrical Safety	EN 61010-1
Over voltage category	Cat. III 300 V
Mechanical & General
Size	Transmitter:	190 mm x 85 mm x 50 mm
	Receiver:	250 mm x 65 mm x 45mm
Weight	Transmitter:	0.45 kg
	Receiver:	0.36 kg
Batteries	Transmitter:	6 pc Batteries 1.5V
	Receiver:	1 pc Battery 9V
