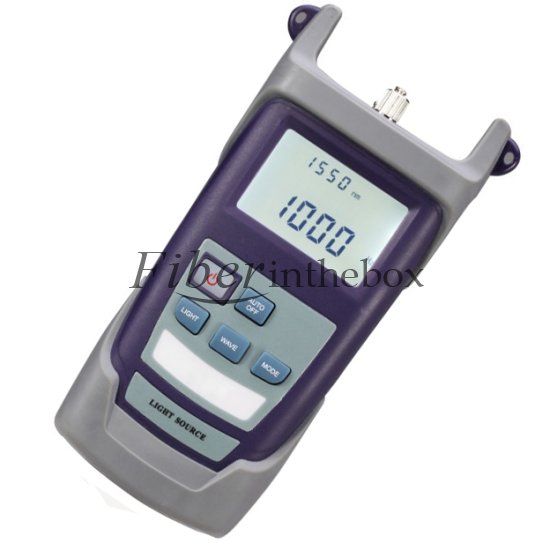

New Handheld Laser Light Source FS3100A

FS3100 series of handheld laser light source can provide 1-4 stable output wavelengths upon customers' request. It not only can provide visible red 650nm, but also can provide dual wavelength 1310nm and 1550nm (or 1310nm/1490nm/1550nm) laser output to the single mode fiber measurement, or provide 850/1300/1310/1550nm four wavelength laser output. And it has a long continuous working time which is up to 45 hours, it is ideal for optical fiber test instrument works.
Together with our power meter, it is a perfect solution for the optical fiber network characterization.



• High stability multi-wavelength single-(multi) mode output, CW mode or modulation
• Large LCD displays status of the operating wavelength
• Continuous working time of up to 45 hours
• Wavelength switching speed, operational flexibility
• Automatic shutdown can be set



Fiber production and research devices
Fiber Network Testing and Maintenance
Optical Communication Teaching and Test



This price is only for FS3100A with two wavelengths (1310, 1550nm) laser output. And we can also provide this model for 1 to 4 wavelengths according to customers' need.



- Instrument Type: FS3100A
- Wavelength (nm): According to need to set 1 to 4 wavelengths, and for this model, it is 1310 & 1550nm
- Light-emitting device: FP-LD
- Optical output power (dBm): 0 (650nm) / -7/-7
- Modulation: CW/2Hz (650nm) / 270Hz, 1KHz (1310nm, 1550nm, etc.)
- Fiber Type: SM, MM
- Connectors: FC / PC
- Operating temperature (°C): -10 ~ 60
- Storage Temperature (°C): -25 ~ 70
- Auto power off time (min): 10
- Battery operating time (h): 45
- Dimensions (mm): 172 × 82 × 33
- Power: Built-in rechargeable lithium battery
