Introduction

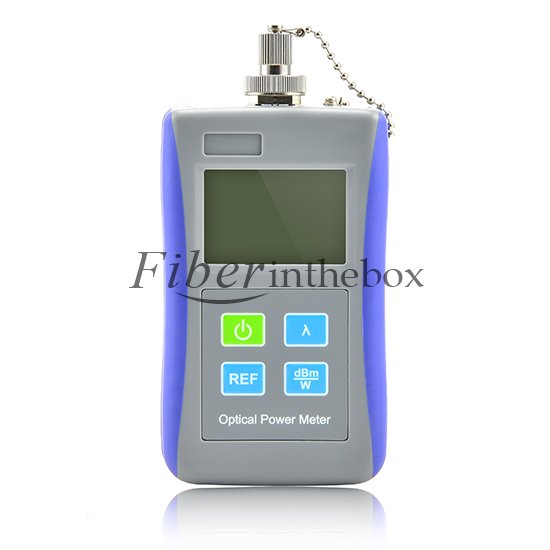

BD502 handheld optical power meter is a self-developed test instrument, with the current international advanced signal processing, microprocessor hardware and software and micro-electronics technology to provide users with high-performance, high reliability, compact, easy to operate the equipment. It was widely used in optical fiber communications, CATV, optical fiber sensing, optical information processing field, It is an impo ant optical fiberal testing instrument in scientific research and engineering. And for the BD502A optical power meter, it is specially used in maintenance of Telecom, and we can provide this high quality and trustwo hy product at a very large quantity.
Features
• High sensitivity, large dynamic range
• Universal connector interface FC/SC/ST
• Quick response, without warm-up and reducing testing time
• Large LCD display and backlight
• Universal connector interface FC/SC/ST
• Quick response, without warm-up and reducing testing time
• Large LCD display and backlight
Application
• Maintenance Telecom
• Maintenance CATV
•Test Lab of Fiber Optic
• Optical fiber sensors
• Maintenance CATV
•Test Lab of Fiber Optic
• Optical fiber sensors
Kind Note
Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. If you need this brand new BD502A handheld optical power meter at a large quantity, please feel free to contact us, we will provide you a special discount.
View Detailshttps://www.Fiberinthebox.com
Specifications
| Type | BD502A | BD502B |
| Wavelength (nm) | 800～1650 | |
| Detector | InGaAs | |
| Optical Connector | FC SC ST Optional | |
| Measurement Range (dBm) | -70～+10 | -50～+26 |
| Uncertainty | ±5% | |
| Standard Wavelength (nm) | 850、980、1310、1490、1550、1625 | |
| Resolution (dB) | 0.01 | |
| Power Supply | 1pcs Battery 9V | |
| working time (h) | 130 | |
| Operating Temperature (°C) | -10～+50 | |
| Storage Temperature (°C) | -20～+70 | |
| Automatic shutdown (min) | 10 | |
| Dimension (mm) | 170*100*50mm | |
| Weight (g) | 400g | |
