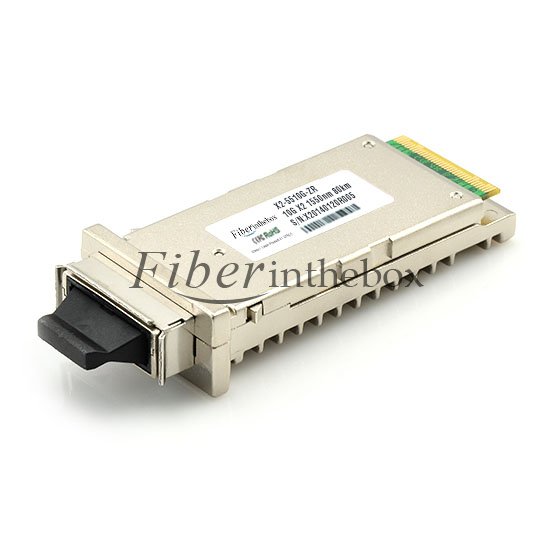

10GBASE X2 ZR 1550nm 80km Single-Mode Optical Transceiver

SKU#:FITB98454FBP
Model#: X2-10G55-80-xx
xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Price: US$ 1,176.00
Sold: 177
Availability: In Stock
:
Looking for a perfect transceiver? Fiberinthebox provide customized solutions for all needs and specifications,like P/N,S/N,Vendor Name,Label,etc. We create a made-to-order transceiver just for you. Please email us at sales@Fiberinthebox.com for your additional customized requirements.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1,176.00 10-19US$ 1,152.48 20-49US$ 1,128.96 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
X2-10G55-80-xx
The 10G X2 80km transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. Designed for distances of up to 80km, the transponder module comprises a transmitter with a directly modulated uncooled 1550nm EML laser, a receiver with a APD photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).
Features
Compatible with X2 MSA Rev.2.0b Suppo of IEEE 802.3ae, 10GBASE-ZR application Average Output Power:0~4dBmReceiver Sensitivity:-24dBm Transmission distance up to 80km over SMF Low Power Consumption 2.0 W (typ.) APD Photo-detector Laser Class 1 compliant Duplex SC connector Hot pluggable 70-pin connector with XAUI electrical Interface Complaint with the EU RoHS 6 Environmental requirements Operating case temperature standard : 0°C to +70°C Built-in Digital Diagnostic Function
Applications
Gigabit Ethernet Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systems
Ordering Information
Pa No. Data Rate (Gbps) Wavelength (nm) TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
X2-10G85-3M-xx       ≤ 10 850      -6~ -1     ﹤-10           300m    MMF         SC Com./Ex./Ind.      Yes
X2-10G31-2M-xx       ≤ 10 1310       -5.2~0     ﹤-14.4           220m    MMF         SC Com./Ex./Ind.      Yes
X2-10G31-10-xx        ≤ 10 1310       -6~ -1      ﹤-15           10km    SMF         SC 0~70℃      Yes
X2-10G55-40-xx       ≤ 10 1550       -1~2      ﹤-15.8           40km    SMF         SC 0~70℃      Yes
X2-10G55-80-xx       ≤ 10 1550       0~4      ﹤-24           80km    SMF         SC 0~70℃      Yes
Notes xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply X2-10G55-80-xx according to your requirements, and design X2-10G55-80-xx label and packaging for your company. We welcome any inquiry for customized 10G X2 optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Details


Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 10G X2 From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of 10G X2 transceivers. All of our 10G X2 transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 10G X2 transceivers to work in your system and all of our 10G X2 transceivers come with a lifetime advance replacement warranty. If you have questions about 10G X2 optics, please feel free to contact us at sales@fiberinthebox.com .
