2 Channel Video & 1 Return Data to Fiber SM FC 20km Optic Video Multiplexer

SKU#:FITB54780YQR
Model#: FITB-2V1D-SM-FC-20
Price: US$ 61.75
Sold: 3924
Availability: In Stock
Connector Type:
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 61.75 10-19US$ 60.52 20-49US$ 59.28 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

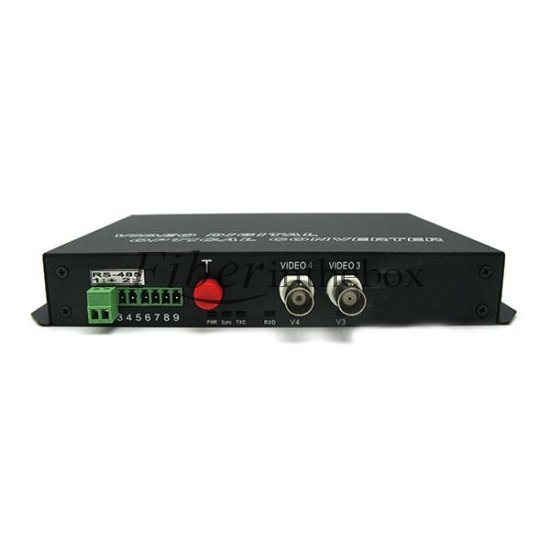

2 Channel Video & 1 Return Data to Fiber Optic Video Multiplexer Transmitter and Receiver SM FC 20km

Descriptions:
Model: FS-2V1D-SM-FC-20KM Transmitter + Receiver Fiber Mode: Single-Mode Wavelengths: 1310nm/1550nm Optical Power Budget: 12dB Maximum Transmission Distance: 20km Fiber Optic Video Transmitter & Receiver transmission 2-Channel digital composite video and 1 return data, the data suppo RS485, RS232, RS422 protocols. Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage). Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Key Features:
Suppo Point-to-Point or Daisy-Chain connection Uncompressed Digital Composite Video over one fiber Compatible with all PAL, NTSC,SECAM Video Systems Data suppo RS485(2-wire or 4-wire),RS232,RS422, Contact Closure Single-Mode Fiber Suppo for Distances up to 100 km LED Status Provide Rapid Indication of Operating Parameters No EMI or RFI and no ground loops Suppo Coarse Wavelength Division Multiplexing (CWDM) Stand alone Produce according to customer's specifications,providing OEM
Specifications
Video Connectors
Number of Channels 2 channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Data 3 Pin Terminal Block
Input/output Compatibility PAL,NTSC,SECAM Optical FC (Standard)
Input/output voltage 1.0 Volt p-p Standalone power Screw terminal block
Bandwidth 6.5MHZ Rack Power AC line card
Bit Resolution 8-Bit Digital Transmission Electrical & Mechanical
Differential Gain < 1.5% Input Power Requirements DC 5V@2A
Differential Phase < 1.5° Power Adapter AC 100V~240V
Tilt < 5% Power Consumption < 3W
Signal-to-Noise Ratio(SNR) > 67 dB Shipping weight 1.8kg(include TX & RX)
Data
Data Formats RS485(2-wire or 4-wire), RS232/422,Contact Closure
Data Rate DC to 115.2Kbps
Bit Error Rate 10E-9
Environmental
Operating Temperature -45°C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours
