12 Fibers Wall Mounted Fiber Optic Terminal Box As distribution box FITB-48A/SC12

SKU#:FITB47230RBC
Model#: FITB-48A-SC-12
Price: US$ 11.59
Sold: 1495
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 11.59 10-19US$ 11.36 20-49US$ 11.13 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
The Fiber Optic Terminal Box is a kind of optical fiber management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
The FS-48A/SC12 we provide is a kind of high quality, micro sized optical fiberal termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC adapter, the box can be installed on the indoor wall and terrace.
Features and Advantages
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation The box has a pothook, which is convenient to install and dismantle The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray The box is of unique structure, reasonable layout, and has adequate room for operation Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly The indoor type is of excellent seal performance, which could prevent water from entering effectively Be installed with SC adapter Up to 12 cores splice capacity It can be installed on the wall and in the cabinetDimension(mm): 330*183*70
Kind Reminder
This price is for FS-48A/SC12 optical fiber terminal box, not including the adapters and pigtails. If you need them be installed, please contact us for details at sales@fiberinthebox.com , we can make it for you with reasonable price. Thank you!
Applications
Applicable in the straight through or branch connection of indoor optical cable Used for wire distribution and end connection of various optical fiber system Fit for wall mounted
Order Information
Type Size(mm) Max capacity(core) Remark
FS/48A-FC12 330x183x70 12 The body is made of cold rolled steel sheet,with electrostatic spraying,12 outlets for adaptors
FS/48A-SC12 330x183x70 12
FS/48A-ST12 330x183x70 12
FS/48A-FC24 330x183x100 24
FS/48A-24 330x183x70 24 The body is made of cold rolled steel sheet with electrostatic spraying,fiber pigtail outlet
FS/48A-48 330x183x70 48
FS/48A-CQ48 330x183x70 48
FS/G-24A 330x120x46 24
Packing Information
Type Net size Net weight(kg) Packing size Packing weight (kg) No./ca on
(mm)   (mm) pcs
FS/48A 360X193X85 1.85 430x370x470 20 10
FS/48A-FC24 360X193X115 2.05 430x370x470 18 8
FS/G 320x150x60 1.05 630x330x340 20 20

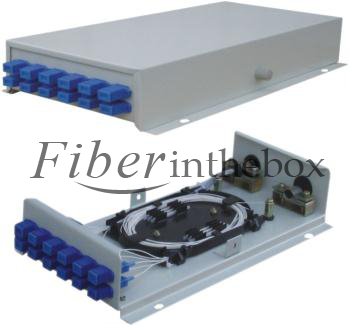

Detailed Picture
