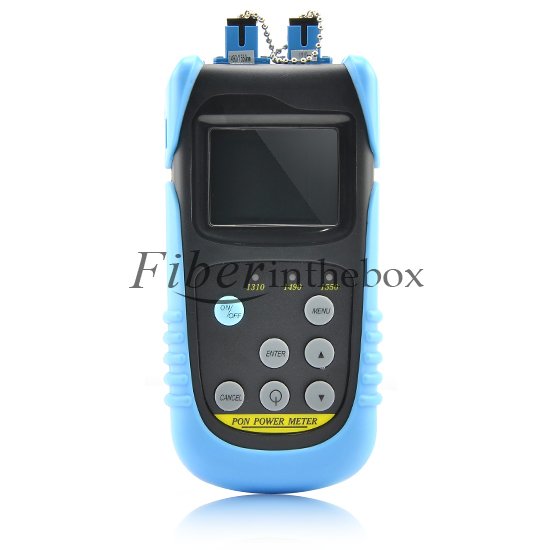

PON Power Meter FS607P

SKU#:FITB17578JHZ
Model#: FS607P
Price: US$ 141.55
Sold: 3792
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
PON optical power meter is a tester designed for design, operation and maintenance of FTTX network. It is able to concurrently measure the optical power values of voice, data and video signals. It is an ideal choice for the construction and maintenance of FTTX network works.
The FS607P is with high quality HD TFT color LCD, and the dual-po through the design, guarantee the full communication testing from the OLT to the ONT.



Features
Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm, 1310nm)
Used in Burst mode measurement of 1310nm upstream
Dual-po through the design, guarantee the full communication testing from the OLT to the ONT
Three status LEDs represents different optical signal conditions of Pass, Warn and Fail respectively
Easy to use, simply connect the fiber to read the results
HD TFT color LCD
USB communication po enables data transfer, easy and quick
200 measurement items can be saved in PON power meter or computer for data review
Through the background software setting threshold, upload data, calibration wavelength
Auto power off function, and time settings on the device, the threshold setting



Application
FTTx / PON opening: In the opening stage of all PON signals are measured to verify and ensure that meet network standards
FTTx / PON maintenance: routine maintenance of various transpo issues, such as: connector end surface contamination, fiber macro bending, breaking, Optical fault, etc.; that will have a loss of signal or transmission performance simultaneously measure and display 1310 upstream, 1490 downstream and 1550 downstream the power of three wavelength values.



Standard Packing
FS607P PON optical power meter
Operation Manual
Product Warranty Cards
Ce ificate
Po able Bag



Note
We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.
If you need more than one connector, the price would be different, please contact our sales at sales@fiberinthebox.com for more details.



Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new PON Power Meter FS607P at a large quantity.

Package Picture
Specifications


Type
FS607P
Calibrating wave length 1310 upstream measurement 1490 downstream measurement 1550 downstream measurement
Pass zone (nm) 1260~1360 1470~1505 1535~1570
Measurement range (dB) -40~+10 -40~+10 -40~+20
Isolation 1310nm (dB) - >40 >40
Isolation 1490nm(dB) >40 - >30
Isolation 1550nm(dB) >40 >40 -
Measurement accuracy
Connatural uncertainty (dB) ±0.5
PDL(dB) <±0.25
Linearity (dB) ±0.1
Pass through insertion loss(dB) <1.5
General Indicators
Display LCD:128×64
Unit dB dBm xW
Resolution 0.01dB
Input voltage DC 6.5V~8.5V
Rechargeable battery 9V battery
AC adapter 9V
Type of optical fiber Single mode optical fiber
Working temperature -10~+60°C
Storage temperature -25~+70°C
Dimensions (cm) 16.5 x 8.0 x 3.5
