Fiber Optic Light Source FS7002A (850/1300nm)

SKU#:FITB42241YLT
Model#: FS7002A
Price: US$ 81.70
Sold: 4829
Availability: In Stock
:
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
FS7002 Handheld Laser source series is microprocessor-controlled intelligent Handheld Laser source. It can be used to test the usual single-mode optical fiber connector loss, a single-mode fiber-optic network, LAN, FDDI, ATM, FTTH optical fiber systems, It also can test the telecommunications networks, CATV systems which need large dynamic range test system maintenance. The handheld stable source with the international advanced level in the micro-processing hardware ,software technology , microelectronic technology, and surface mount (SMT) technology provides its users with high performance, high reliability, which are the best performance at home and the most practical appearance of the light source. With the current international advanced level, handheld light source provides continuous or modulated light output (2 KHz) in the state of the two working conditions.
Together with the FS6070 series optical power meter, it is a perfect solution for the optical fiber network characterization.



Features
Larger and more stable output power comparable to desktop source stabilized output
Using the single key to switch the wavelength is flexible and convenient
High reliability
Universal interface has three types of adapter: FC /SC / ST
Easy to operate
Small size/light weight
Battery-powered, convenient field work, omnipotence joint Backlight at night



Applications
Fiber production and research devices
Fiber Network Testing and Maintenance
Optical Communication Teaching and Test



Standard Packing

FS7002A Handheld Laser sources, Operating manual, Maintenance card, Ce ificate, Drying agent, Carrying case

Note
2.5mm UPP adapter means a 2.5mm Universal Push Pull adapter which fits to all 2.5mm optical fiber connectors.If you choice 2.5mm UPP adapter, we will send you FC, SC, and ST connectors.If no special requirement, we will send you the FC connector.

Fiberinthebox is your reliable supplier of optical light source, and all of it have been 100% tested before delivery. If you need this optical fiber light source FS7002A at a large quantity or have any problems or special requirement, please feel free to contact us.

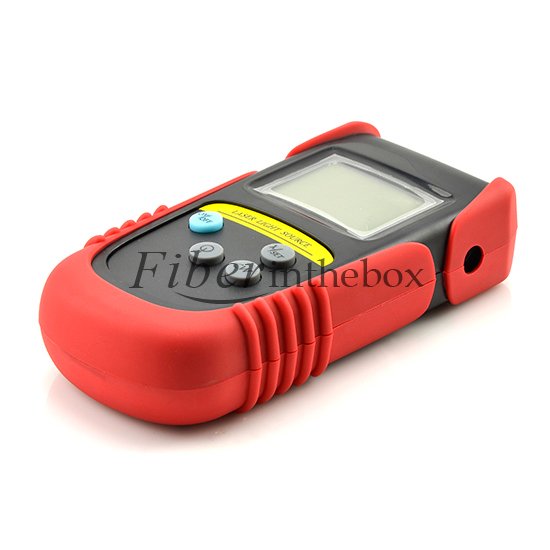

Sample Picture

Specifications
Type FS7002 FS7002A FS7002B FS7002P FS7002D
Emitter Type F-P LD
Wavelength(nm) 1310/1550 850/1300 850/1310/1550 1310/1490/1550 850/1300/1310/1550
Output Power -7~ -9 dBm
Output Stability ±0.10dB/1h(20°C)
Mode of Light Output CW & MOD
Modulation CW, 270Hz, 1KHz, 2KHz
Optical Interface FC adapter (SC, ST  Optional)
Operating Temperature -10°C~+ 60°C
Storage Temperature -20°C~ + 70°C
Work humidity <95%
Automatic shutdown time 10min
Battery 9V alkaline battery
Dimensions 16.5×8.0×3.5cm
Weight 280g

Note:
1. We can supply the other wavelengths of dual-wavelength light source according to customers' requirements.
2. Besides the light sources listed in the table, we can make up the arbitrary single-wavelength and dual-wavelength light source into an integrated three-wavelength light source output and parameter index reference to dual-wavelength data.
3. Obtaining data in the way of CW, (we can provide the output-power according customers' requirements.) we can provide product which output power is customer request.
4. In the CW mode, the warm half-hour later measured. 5. CW refers to a constant optical power output.
