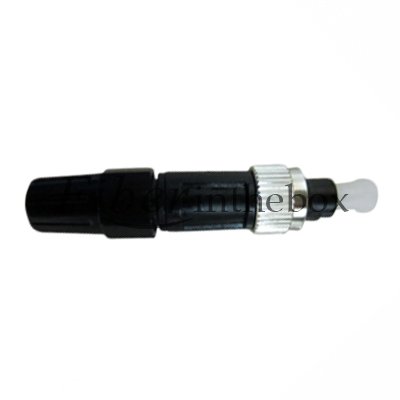

FC/PC Type with Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector

SKU#:FITB71356YPB
Model#: FITB-Q-FC-SM
Price: US$ 3.33
Sold: 4111
Availability: In Stock
:
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 3.33 10-39US$ 3.26 40-69US$ 3.19 70-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the FC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.

This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.

FS-Q-SC-SM connector spec sheet:
Connector Type: FC
Fiber Application: Singlemode
Fiber Type: Simplex
Number of Fibers: 1
Maximum Cable Diameter (mm): 250um, 900um, 2mm, 3mm Fiber Types
Connector Ferrule: Ceramic
Fiber Size: 9/125um
Notes: Pre-polished, pre-stubbed factory polished ferrule
