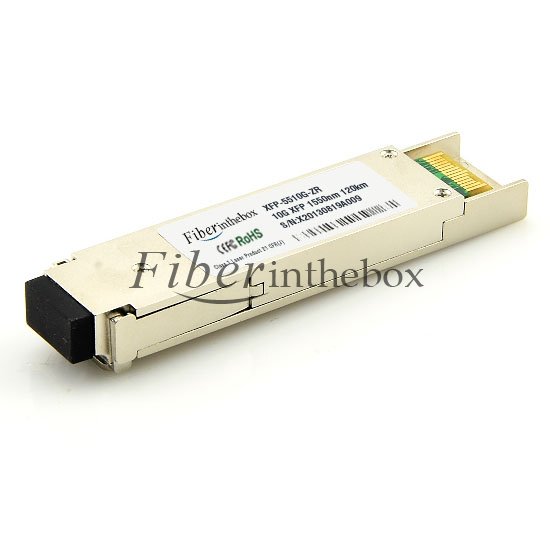

10GBASE XFP ZR 1550nm 120km Single-Mode Optical Transceiver

SKU#:FITB04308NEM
Model#: XFP-10G55-120-xx
xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Price: US$ 1,141.70
Sold: 4897
Availability: In Stock
:
Looking for a perfect transceiver? Fiberinthebox provide customized solutions for all needs and specifications,like P/N,S/N,Vendor Name,Label,etc. We create a made-to-order transceiver just for you. Please email us at sales@Fiberinthebox.com for your additional customized requirements.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1,141.70 10-19US$ 1,118.87 20-49US$ 1,096.03 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
XFP-10G55-120-xx
The XFP-10G55-120-xx series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-ZR/ZW defined by IEEE 802.3ae. It is with the XFP 30-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550 nm. The transmitter section uses a 1550nm EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Key Features
10GBAS-ZR XFP 1550nm 120km optical transceiver High Quality with ISO9001, TUV, CE, FCC, UL and RoHS ce ificates Average Output Power:0~4dBmReceiver Sensitivity:-24dBm Suppo s 9.95Gb/s to 11.1Gb/s bit rates Hot-pluggable XFP footprint Link length up to 120km Uncooled 1550nm EML laser Duplex LC connector Built-in digital diagnostic functionsCase Operating Temperature: Standard: 0°C to 70°C Complaint with XFP MSA
Applications
OC192/ STM 6410GBASE-ZR/ZW 10G Ethernet1200-SM-LL-L 10G Fiber ChannelP1L1-2D2ITU-T G.709
Ordering Information
Pa No. Data Rate (Gbps) Wavelength (nm) TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
XFP-10G85-3M-xx 9.95~11.1G 850 -7.3~-1 ﹤-11.1 300m MMF LC Com./Ex./Ind. Yes
XFP-10G31-2M-xx 9.95~11.1G 1310     220m MMF LC Com./Ex./Ind. Yes
XFP-10G31-2-xx 9.95~11.1G 1310 -5.2~0 ﹤-14.4 2km MMF LC Com./Ex./Ind. Yes
XFP-10G31-10-xx 9.95~11.1G 1310 -6~0 ﹤-14.5 10km SMF LC 0~70℃ Yes
XFP-10G31-20-xx 9.95~11.1G 1310 -3~+1 ﹤-15 20km SMF LC 0~70℃ Yes
XFP-10G31-40-xx 9.95~11.1G 1310 0~+4 ﹤-16 40km SMF LC 0~70℃ Yes
XFP-10G31-70-xx 9.95~11.1G 1310 +2~+7 ﹤-22 70km SMF LC 0~70℃ Yes
XFP-10G55-40-xx 9.95~11.1G 1550 0~+4 ﹤-16 40km SMF LC 0~70℃ Yes
XFP-10G55-80-xx 9.95~11.1G 1550 0~+4 ﹤-24 80km SMF LC 0~70℃ Yes
XFP-10G55-100-xx 9.95~11.1G 1550     100km SMF LC 0~70℃ Yes
XFP-10G55-120-xx 9.95~11.1G 1550     120km SMF LC 0~70℃ Yes
Notesxx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply XFP-10G55-120-xx according to your requirements, and design XFP-10G55-120-xx label and packaging for your company. We welcome any inquiry for customized 10G XFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Details


Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 10G XFP From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of 10G XFP transceivers. All of our 10G XFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 10G XFP transceivers to work in your system and all of our 10G XFP transceivers come with a lifetime advance replacement warranty. If you have questions about 10G XFP optics, please feel free to contact us at sales@fiberinthebox.com .
