Small in size, lightweight: only 2.8kg with battery;
Takes only 8 seconds for splicing,25 seconds for pyrocondensation;
Can set automatic sta of splicing or of pyrocondensation upon close of the cover;
Simultaneous display of X/Y axis; zoom in up to 304 times original size;
Real time discharging for adjustment; no need for fu her adjustment;
Electrode has a long life; discharging times up to 4000;
With USB and VGA po s;
5.7 inch digital high resolution LCD;
Precise real-time display of remaining battery capacity;
Built-in high capacity battery, which enables up to 220 times of splicing and heating;
HD aligner for double separate optical fibers
High performance CMOS sensor
Sensor pixels 640*480
Precise fiber alignment
Precise evaluation of splicing loss
AC-DC mix discharging technique
Current feedback and environment compensation

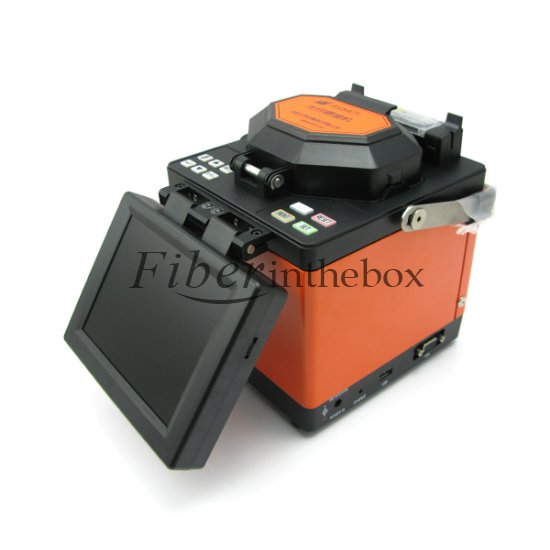

| Key | Description | QTY |
| 1 | AV6471 optical fiber fusion splicer | 1 |
| 2 | AC power adapter | 1 |
| 3 | AC current cable | 1 |
| 4 | Standby electrode | 1 |
| 5 | Blower brush | 1 |
| 6 | Bottle with siphon | 1 |
| 7 | Fiber bracket | 1 |
| 8 | User´s manual | 1 |
| 9 | Luxury tote kit | 1 |
| Key | Description | Remark |
| 1 | Fiber Cleaver | AV33012 |
| 2 | Li-Ion battery | 11.1/10AH |
| 3 | Tool kit | / |
Technical Parameter
|
Applicable Fiber |
SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF |
|
Average Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
|
Return Loss |
<-60dB |
|
Operation Mode |
Auto, Half auto, Manual |
|
Align Mode |
Advanced PAS align mode |
|
Fiber Diameter |
clad diameter:80µm∼150µm,coating diameter:100µm∼1000µm |
|
Cleave Length |
8-16mm(coating diameter<250µm), 16mm(coating diameter 250-1000µm) |
|
Magnification |
Vertical 152times,horizontal 304times |
|
Image Display |
5.7´ 640*480 LCD |
|
Pull Test |
Standard 2N(optional) |
|
Pyrocondensation Tube |
40mm,60mm and a series of micro Heat-Shrinkable Tubing |
|
Battery Capacity |
Typically splice 220 times, charging for 3.5 hour(available when charge) |
|
Battery Lifetime |
Cycle life up to 300-500 times, replaceable |
|
Electrode Lifetime |
>4000 times, replaceable |
|
Lighting for Construction |
Built-in super High-brightness LED supply convenient for night work |
|
Ports |
USB,VGA |
|
USB,VGA |
Built in 11.1V Lithium Ion Battery. AC adopter(input AC10-240, output DC13.5V/4.5A) |
|
Environment Adaptation |
Temperature range:-10℃∼50℃;Humidity:95%RH(40℃,no condensing);Altitude:0∼5000m |
|
Size |
L×W×H=160×150×140(mm) |
|
Weight |
2.3kg(no battery ), 2.8kg (including battery) |
