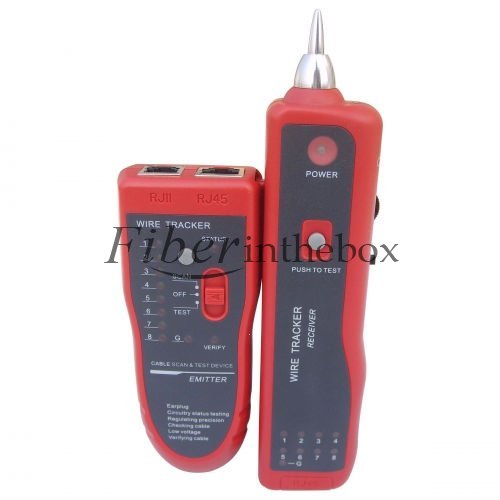

Wire Tracker NF-801R/B

Introduction

The cable tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some state in the line, and more convenience to install, debug, maintain telephone line. There is a Sender and a Receiver included in the cable tracker.

Features

Cable Tester for UTP STP RJ45(manual switch)
Automatic efficient scan for the miss wiring, disorder cable, open and sho circuit
TEL BNC test available(Adapter needed)
Remotely test cable up to 1000 ft in length ( remote kit included )
Protective power switch for low power consumption
High quality protecive case provides more secure protection
Judge continuity of the cables or wires
Track the cables or wires, and diagnose the break point
Receiver the tone signal on the cables or wires (telephone line)
Identify the state in the working telephone line (clear ring, busy)
Send a single solid tone or a dual alternating tone to the object cables or wires

Specification

Power supply: DC 9V battery
Working current: Tester: ≤10mA Receiver: ≤30mA
Signal transfe mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: ≥3Km
Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm

Functions

1. Trace telephone wire/LAN cable;
2. Trace wire in electrical system;
3. Verify LAN cable condition;
4. Continuity test;
5. Low Battery Indication;
6. Bright white LED flash light.
7. Cable Assignment Test: Open, sho and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) Telephone cable
8. Cable State Testing (2-wire) :
a. Line DC detecting and anode, cathode determination
b. Ringing signal detecting
c. Open, sho and cross testing

Package Including

1 x Cable Transmitter
1 x Cable Receiver/Tracker
1 x RJ45 Cable
1 x RJ11 Cable
1 x Cable with crocodile clamp
1 x Earphone
1 x Instruction manual
