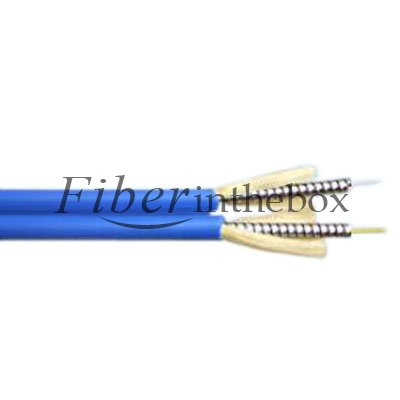

Singlemode Armored Zipcord Indoor Cable
Cable Structure:<0.9mm tight buffer fiber+Flexible metal tube+Aramid yarn+ Outer jacket(PVC,LSZH) >*2
Features:
1.Flexible metal tube protect the optical fiber.
2.High compression resistant,high tensile resistant,rat –bite resistant.
3.Bend resistant and optimum flexible.
4.Easy wiring,secured and reliable.
Specification¶meter:
| Outer diameter | 2.9*5.7mm | |
| Standard color | blue | |
| Cable weight | 25kg/km approx. | |
| Operating temperature | -40℃+75℃ | |
| Storage temperature | -40℃+80℃ | |
| Tensile strength | Sho term | 300N |
| Long term | 160N | |
| Compression resistant strength | ≥150KGf/100MM | |
| General attenuation | 1310nm | ≤0.35dB/km |
| 1550nm | ≤0.25dB/km | |
| Bending radius | Dynamic | 45mm |
| Static | 30mm | |
