The price on the website is per meter price. The more, the cheaper. Pls contact us for details.

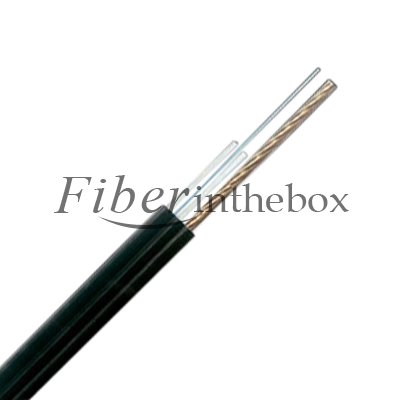

1 Strand Singlemode 9/125 FTTH Drop Cable G657A1 GJXFH
Features:
1. The Optical fiber unit is positioned in the centre
2. Two parallel fiber reinforced plastics as placed at the two sides
3. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
4. Simply structure, light weight and high practicability
5. LSZH and flame retardant sheath
6. Different cores are available
| Geometrical Characteristics | |||
| Fiber core | 1 | 2 | |
| Cable dimension(mm) | 2.0x5.0 | 2.0x5.0 | |
| Cable weight(kg/km) | 21 | 22 | |
| Mechanical Characteristics | |||
| Max. Load | Long term | 60 | 60 |
| Sho term | 120 | 120 | |
|
Bending Radius (CM) |
Dynamic | 30 | |
| Static | 15 | ||
| Fiber | |||
|
Fiber Type (core/cladding dimension) |
G657A1 | ||
| Transmission Characteristics | SMF | ||
| 1310/1550(nm) | |||
| Max. Attenuation(dB/km) | 0.45/0.30 | ||
| AVG attenuation(dB/km) | 0.40/0.25 | ||
| Environmental Characteristics | |||
| Storage Operating Temperature | -20 to 60(degree) | ||
