2 Fibers Singlemode 9/125 FTTH Drop Cable G657A1 GJXFH

SKU#:FITB94831PJM
Model#: FC-GJXFH-G657A1-S-2
Price: US$ 0.30 ( Per Meter )
Sold: 591
Availability: In Stock
Length:

Roll(s):
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 0.30 10-19US$ 0.30 20-29US$ 0.29 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

The price on the website is per meter price. The more, the cheaper. Pls contact us for details.

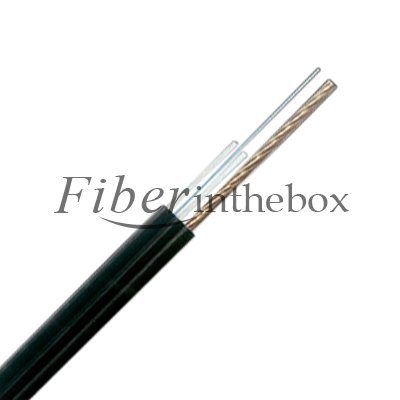

2 Strands Singlemode 9/125 FTTH Drop Cable G657A1 GJXFH

Features:

1. The Optical fiber unit is positioned in the centre
2. Two parallel fiber reinforced plastics as placed at the two sides
3. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
4. Simply structure, light weight and high practicability
5. LSZH and flame retardant sheath
6. Different cores are available


Geometrical Characteristics
Fiber core 1 2
Cable dimension(mm) 2.0x5.0 2.0x5.0
Cable weight(kg/km) 21 22
Mechanical Characteristics
Max. Load Long term 60 60
Sho term 120 120
Bending Radius
(CM)
Dynamic 30
Static 15
Fiber
Fiber Type
(core/cladding dimension)
G657A1
Transmission Characteristics SMF
  1310/1550(nm)
Max. Attenuation(dB/km) 0.45/0.30
AVG attenuation(dB/km) 0.40/0.25
Environmental Characteristics
Storage Operating Temperature -20 to 60(degree)
