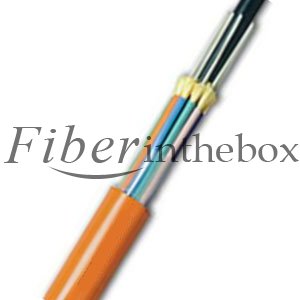

12 Fibers Multimode Multi Purpose Break-out Cable

SKU#:FITB68456VWZ
Model#: FC-BOC-M-12
MFG PART#: MM-12MPBC-FS
Price: US$ 1.93 ( Per Meter )
Sold: 243
Availability: In Stock
Length:

Roll(s):
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1.93 10-19US$ 1.89 20-29US$ 1.85 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

The price on the website is per meter price. The more, the cheaper. The Multimode is for 50/125 or 62.5/125, pls specify your multimode type when you buy it.

12 Fibers Multimode Multi Purpose Break-out Cable

Characteristics:

Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range
Excellent geometrical dimension of the fiber


Fiber count 2 strands 4 strands 6 strands 8 strands 12 strands 24 strands
Cable weight (kg/km) 45 54 75 100 170 330
Tight buffer fiber diameter 900±50μm
Tensile Strength

Long term

200N
Sho term 660N

Bending Radius

Dynamic

20×D (Cable Diameter)
Static 10×D (Cable Diameter)
Crush resistance (IEC794-1) Long term 300N/100mm
Sho term 1000N/100mm
Installation Temperature -5°C~+50°C
Operating Temperature -20°C~+60°C
Transpo Temperature -20°C~+60°C
Storage Temperature -20°C~+60°C
