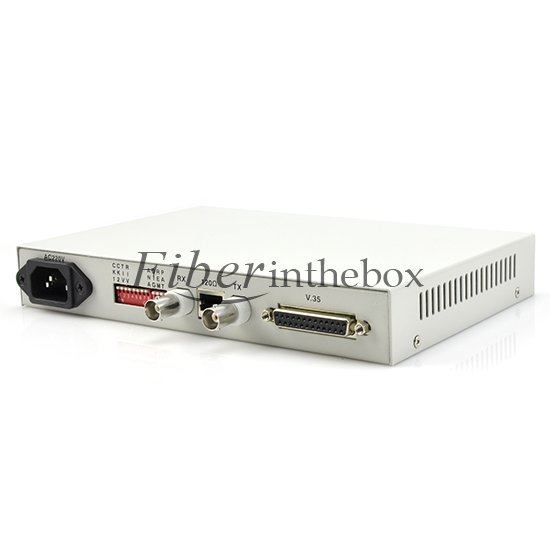

E1 G.703 - V.35 Interface Conve er/Protocol Conve er
E1 G703 to V35 conve or provide conversion between ITU-T G.703 standard E1 interface and standard V.35 interface, can receive synchronous 2.048 Mbps data, transfer it to router, DDN, multiplexer or other devices.
Features:
- Conve s V.35 interface into G.703 E1 interface
- 2.048Mbps data transparent transmission
- Provides three clocking modes for maximum flexibility
- Suppo s E1 balanced and unbalanced interfaces
- Power supply AC220V& DC-48V
Technical Specification
E1 Po Standard
- 2M Po : ITU-T G.703 and G.704 compliant
- Code Type: HDB3
- Code Rate: 2.048Mb/s±50ppm
- E1 Interface: Unbalanced: 75Ω/BNC or Balanced: 120Ω/RJ45
V.35 Po Standard
- Code Rate: 2.048Mb/s
- Clock :Master/Slave/Source three optional clocking modes
- Interface Type: V.35 / DCE
- Electrical Characters: ITU-T V.35 proposed standard balance
- Terminal standard: ISO2593 compliant
Environment
- Power Input AC+DC
- Power Consumption: ≤5W
- Operating Temperature: -5°C~50°C
- Storage Temperature: -40°C~+70°C
- Relative Humidity: 10%~90% Non-condensing
- No corrosive and solvent gas, no fluty dust and intense magnetic-field interference
Physical:
- Dimension: 200mm(width) x 43.5mm (height) x 150mm (depth)
