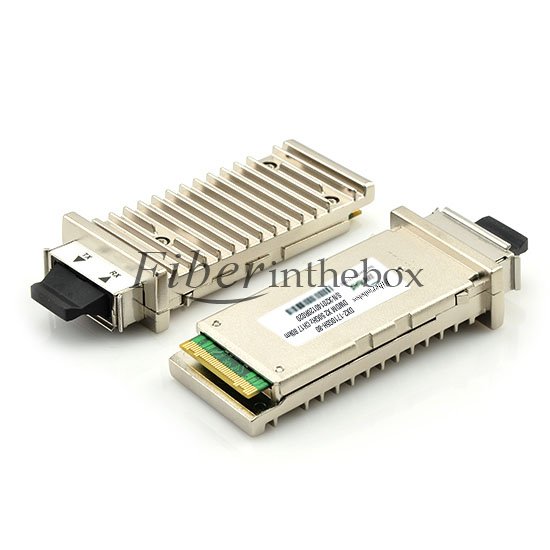

10GBASE 100GHz DWDM X2 40km Single-Mode Optical Transceiver

Model#: DX2-10GXX-40-xx
xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Price: US$ 833.00
Sold: 4009
Availability: In Stock
Looking for a perfect transceiver? Fiberinthebox provide customized solutions for all needs and specifications,like P/N,S/N,Vendor Name,Label,etc. We create a made-to-order transceiver just for you. Please email us at for your additional customized requirements.
Direct Factory Price Contact Us:
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 833.00 10-19US$ 816.34 20-49US$ 799.68 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
The 10G DWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with DWDM cooled EML laser, a receiver with a PIN photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).
Key Features
Compatible with X2 MSA Rev.2.0b Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbit/s Compliance to Fibre Channel 1200-SM-LL-L at 10.51875Gbit/s Available in all 100 GHz C-Band Wavelengths on the DWDM ITU grid DWDM Rated EML Transmitter and PIN High Sensitivity Receiver Low Power Consumption 2.0 W (typ.) Laser Class 1 compliant Duplex SC connector Hot pluggable 70-pin connector with XAUI electrical interface Management and control via MDIO 2-wire interface Complaint with the EU RoHS 6 Environmental requirements Operating case temperature standard : 0°C to +70°C Built-in Digital Diagnostic Function Average Output Power:-1~4dBm Receiver Sensitivity:-23dBm
10G ER/EW 10G Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systems
Ordering Information
Part No. Data Rate (Gbps) Frequency
TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
DX2-10GXX-40-xx       ≤10 100GHz CH17~CH61
     -1~4      ﹤-23           40km    SMF         SC 0~70℃      Yes
DX2-10GXX-80-xx       ≤ 10 100GHz CH17~CH61
     0-4      ﹤-23           80km    SMF         SC 0~70℃      Yes
DX2-10GHXXX-40-xx       ≤ 10 50GHz CH17~CH61 (1563.86~1528.38)       -1~3      ﹤-15           40km    SMF         SC 0~70℃      Yes
DX2-10GHXXX-80-xx       ≤ 10 50GHz CH17~CH61 (1563.86~1528.38)      0~4      ﹤-23           80km    SMF         SC 0~70℃      Yes
Notes XX means DWDM channel/wavelength (CH17 = 1563.86nm, CH18 =1563.05nm, CH19 = 1562.23nm, CH20 = 1561.42nm, etc.)xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply DX2-10GXX-40-xx according to your requirements, and design DX2-10GXX-40-xx label and packaging for your company. We welcome any inquiry for customized DWDM X2 optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.


International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying DWDM X2 From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of DWDM X2 transceivers. All of our DWDM X2 transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee DWDM X2 transceivers to work in your system and all of our DWDM X2 transceivers come with a lifetime advance replacement warranty. If you have questions about DWDM X2 optics, please feel free to contact us at .
