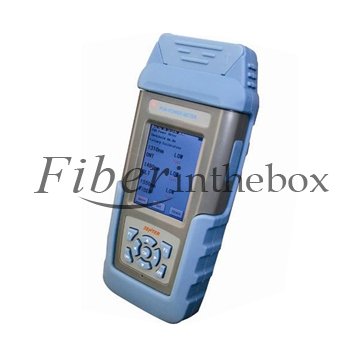

ST805B PON Power Meter

Description
ST805B PON Power Meter is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550)online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators. If you need this brand new high quality ST805B PON Power Meter at a large quantity, welcome to contact us, we will provide a special discount to you.

Main Features
Handheld, easy to operate
Can test 3 wavelengths' power of PON system synchronously: 1490nm, 1550nm, 1310nm
Can test the burst mode signal of 1310nm
32 digits CPU
True color touch screen with 260 thousand colors
Full touch screen operation, simple and convenient
Friendly operation interface, human message management and operation function
Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
Relative value choice and edit function
Can save 1000 records and upload the records through USB to management software
Can set the threshold value, upload data, and calibrate wavelength through management software
EN/CH menu display
Auto shut off (according to set value)
Auto backlit off(according to set value)
Lithium battery or dry battery
Display the voltage of battery
Power saving design (Low voltage self check and power off)
Real-time clock display

Others
LCD: 320*240, True color touch screen with 260 thousand colors
Battery: 7.4V 2000mAH rechargeable Lithium battery or dry battery
Working temperature: -10~ 60°C
Storage Temperature: -25~70°C
Dimensions (mm): 200*90*43
