Type |
Specification |
Remark |
|
Connect Po |
2 EPON SC po |
EPON Fiber po |
|
2 1000/Base-X Fiber po OR |
To connect Router/Switch |
|
|
1 Management po |
To connect PC |
|
|
1 RS-232 Control po |
To connect PC |
|
|
Features |
Complies with IEEE802.3ah standard |
|
|
Powerful OAM function |
||
|
Suppo maximum 32 ONUs |
||
|
Max transmission 20KM distance |
||
|
Max transmission speed 1.25G/1.25G |
||
|
Suppo DBA(Dynamic Bandwidth Assignment) |
||
|
Management function |
GUI management |
|
|
Power supply |
AC input 100-240V |
|
|
Working environment |
0-45℃ |
Operating temperature |
|
10%-90% NO coagulation |
Relative humidity |
|
|
Installing place |
Control Centre |
|

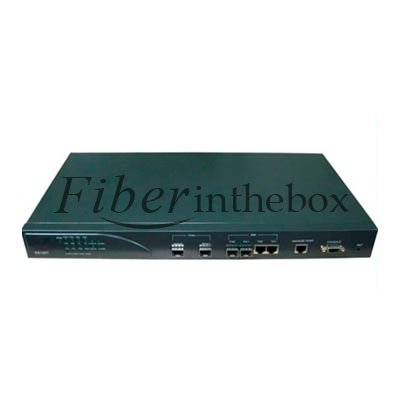

Note: This device is without PON Module and Uplink Module.
If you need the compatible PON Module , 1000BASE-T EPON OLT SFP Transceiver Module , 1000BASE-LX/LH EPON OLT SFP Transceiver Module , please choose it from our website. And welcome to contact us for more details.
|
Type |
|
Remark |
|
Connect Port |
2 EPON SC port |
EPON Fiber port |
|
2 1000/Base-X Fiber port OR |
To connect Router/Switch |
|
|
1 Management port |
To connect PC |
|
|
1 RS-232 Control port |
To connect PC |
|
|
Features |
Complies with IEEE802.3ah standard |
|
|
Powerful OAM function |
||
|
Support maximum 32 ONUs |
||
|
Max transmission 20KM distance |
||
|
Max transmission speed 1.25G/1.25G |
||
|
Support DBA(Dynamic Bandwidth Assignment) |
||
|
Management function |
GUI management |
|
|
Power supply |
AC input 100-240V |
|
|
Working environment |
0-45℃ |
Operating temperature |
|
10%-90% NO coagulation |
Relative humidity |
|
|
Installing place |
Control Centre |
|
Note:This device is without PON Module and Uplink Module
