Description
The INNO Instrument IFS-10 is the best value in a core-alignment fusion splicer. This Fiber Master splicer is designed for high-precision splicing applications and harsh weather conditions.
INNO Fiber Master IFS-10 Core-Alignment Fusion Splicer with the New DACAS (Digital Analysis Core Alignment System) is one of the most dependable splicers on the market. The Fiber Master splicer features a rubberized design for field use in harsh weather conditions. The IFS-10 has a friendly, intuitive GUI (Graphical user Interface) with a 5 inch color LCD screen that is easy to see and is adjustable for front and rear splicer orientation. The sizeable, large battery capacity at full charge allows for up to 350 splices. Amazingly, the IFS-10 splicer is the most reliable and user friendly Core Alignment splicer in the world.
Features:
a. 2.2kg weight (without battery)
b. Splicing method: DACAS
c. (Digital Analysis Core Alignment System)
d. Harsh weather conditions adaptability
e. Friendly sma GUI
f. Large battery capacity: 350 Splice and Heat
g. Quick optimize menu
h. High precision splicing
i. USB master po , easy to upgrade software
j. Operate in Bi-directional view
Package Include
IFS-10 Splicer, High Precision Cleaver, Battery Pack, AC Adapter/Battery Charger, Power Cable, Extra Electrodes, Carrying Case, Cooling Tray, Cigarette Lighter Cable, RS-232 Cable
Note
We Fiberinthebox.com can provide this equipment in a sho time and at a very good price, welcome to contact us at sales@fiberinthebox.com for its price and more details.Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiberinthebox.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the INNO IFS-10 Fiber Master Fision Splicer, please feel free to contact us. We will try our best to provide you the best service.

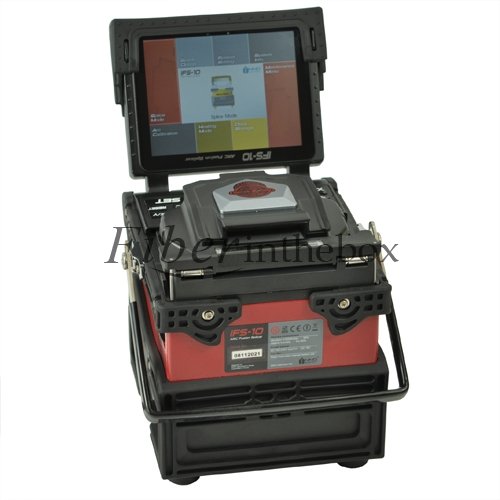

Picture Detail
Specifications
| Splicing Method | Core alignment (DACAS:Digital Analysis Core Alignment System) |
| Average Loss | SM(0.02dB) | MM(0.01dB) | DS(0.04dB) | NZDS(0.04dB) |
| Return loss | >> 60 dB |
| Splice Time | 9s average SM | 7s SM Quick Mode |
| Pull Test | 1.96~2.25N (standard) |
| Electrode Lifespan | > 2,500 arcs |
| Applicable Tiber | SM(ITU-TU.652), MM(ITU-TU.651), DS(ITU-T G.653),NZDS(ITU-T G.655), G657A, G657B |
| Cleaved Tength | Coating diameter < 0.25mm = 8-16mm, Coating diameter > 0.25mm = 16mm minimum |
| Coating Diameter | 100-1000um |
| Cladding Diameter | 80-150um |
| Heating Programs | Preset 10 heating modes |
| Heating Time | FP-03 typical heating time 30s |
| Protection Sleeve | 60mm, 40mm |
| Data Output | USB master device and COM |
| Splice Programs | 100 user mode |
| Splice Memory | Up to 2000 records |
| Battery | Typical full cycle 350 Splice and Heat |
| Power Supply | AC 100-240V input or DC 10-15V |
| Monitor | Color 5" LCD monitor, with tempered glass |
| Cameras | 2 CCD camera system |
| Magnification | XY style: 150 power, X/Y: 300 power |
| Fiber Display | X/Y or XY, single X.Y |
| Weight | 2.2KG (without battery) |
| Size | 155 x 130 x 143mm (excluding rubber bumper) |
| Wind Protection | The max wind speed 15m/s |
| Operating Environment | Elevation 0-5000 meters, -10~50°c, ~95% relative humidity |
| Storage Condition | Temperature -40 to 80°c, ~95% relative humidity |
