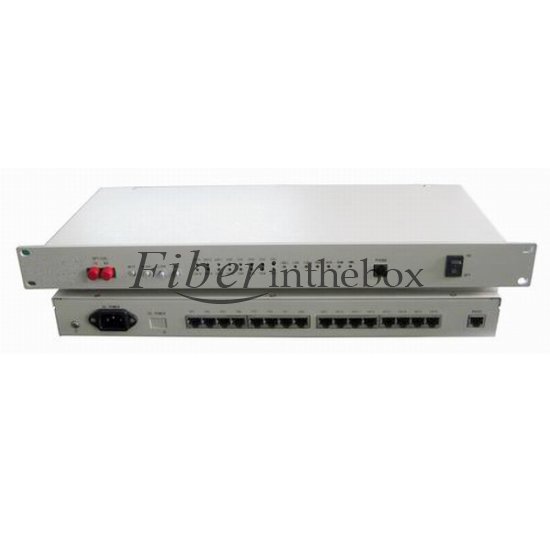

16E1 PDH Fiber Optical Multiplexers Singlemode Dual Fiber 20KM 19-inch Rack

SKU#:FITB13606NXT
Model#: PDH-16E1-19
Price: US$ 256.50
Sold: 3456
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 256.50 10-19US$ 251.37 20-49US$ 246.24 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
16E1 PDH Fiber Optical Multiplexers Singlemode Dual Fiber 20KM 19-inch Rack

The 16 PDH optical fiberal multiplexer is a fiber media transpo for 16 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media conve ers are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC

Specifications :
Single mode dual optical po -16 channels of E1 po sLow power consumption ISO ce ification Optional fiber redandancy are provided Optional Power redundancy to ensure stable systemOptinoal order wirephone are provided Optional function of ALS and SNMP
Main Feature :
Provide 16E1 interface (480BG telephone channel) Provide function of 16E1 remote loop,fiber local loop,and 1 interface phone Optional power 1+1 to ensure stable system Two fiber two direction and single fiber two direction 1+1 power,orderwire phone and the ALS and SNMP are optinal,Please state the requirement when in order 16E1 PDH multiplexer realizes 1~16E1 transmission over fiber E1 spur track loop back testing features, easy to be installed and maintenance External dimensions: 19-inch rack (with distribution frames rack) Provide the 1+1 fiber back up Optical optional by customer 's requirement
Interface:
E1 interface
16E1 interface for 16E1
E1 rate: 2.048Mb/s±50ppm
Code type: HDB3

E1 Style: Pinfet

E1 comply with ITU-T G.703
Jitter compl y with ITU-T G.823 and G.742
E 1 with DB37. Be ab le to be with 75Ω (BNC) or 120Ω (RJ45) by adaptor in the accessory
Fiber
Optical rate: 42.240Mbit/s

optical style:4B5B

Default: dual fiber, single mode, 20km (40km optional)
connector: FC/SC/ST
wavelength:1310nm
Receiver sensitivity:≤ -38dBm(BER ≤ 10-11)
Power Requirements :
Power Input: AC /DC optionalAC180V~240V DC-36V~DC-72V DC+20V~DC+36VPower Consumption: <6Walt
Working Environment:
Operating Temperature: 0℃ ~+50℃Storage Temperature: -40℃ ~+70 ℃
