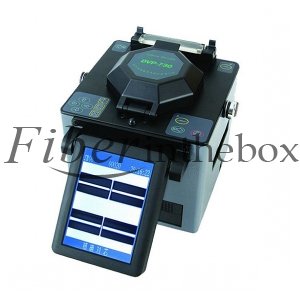

Nanjing DVP 730H FTTH Drop Cable Fusion Splicer

SKU#:FITB83403VCM
Model#: DVP 730H FTTH
Price: US$ 3,484.60
Sold: 1876
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description:
The DVP-730H is used in various working conditions for field fiber splicing and can splice any type of optical fiber cables .
The device is supplied with a kit of miscellaneous tools and accessories. Due to the long battery life and both side operation option ,
the Fusion Splicer DVP-730H keeps operating even in the toughest environments.
This offer provides superior quality at an affordable price.

Main Features:
Color LCD monitor and 256x magnification
Compact & light weight
Reversible monitor with control panels on each side
Max. wind velocity of 15 m/s.
9 Sec. splice time , 40 Sec. tube-heat time
Simultaneous X and Y views
Large capacity internal battery pack with a charger
SYSTEM TEST ensures the best working condition
User programmable
Auto check fiber end face
Auto calibrated parameters
Stores 8000 splice results
Multiple language interface


Standard equipment:

Key
Description
QTY
1
DVP 730H FTTH Fusion splicer
1
2
Rechargable Li-battery pack
1
3
AC adapter
1
4
AC power cord
1
5
Battery charger
1
6
Spare electrodes
1
7
Instruction manual (English)
1
8
Heavy-duty carrying case
1
9
Cooling salver
1
10
Charger cord
1
11
High precision cleaver (tool life: 18 000 cleave operations)
1
12
Clauss CFS-2 stripper
1
13
Fiber Holders
1





Specifications
Technical Parameter:
Applicable fibers Single mode and multi mode silica-base optical glass fiber: FTTH,SM, MM, DS, NZ-DS, EDF
Cladding diameter 100 - 150 µm
Coating diameter 100 - 1000 µm
Cleave length 16 mm (standard)
Average splice loss Single mode fiber: Typ. 0.02 dB
Dispersion shifted fiber: Typ. 0.04 dB
Multi mode fiber: Typ. 0.01dB
Return loss ≥ 60 dB
Average splice time Typ. 9 seconds
Fiber protection sleeve shrinking time 40 mm / 60 mm sleeve: Typ.40 seconds
Protection sleeve length 20 mm, 40 mm, 60 mm
Battery / charger Input power: 85 ∼ 260 V, (47 ∼ 63 Hz)
Output power: 9 ∼ 3 V, 10 Ah, up to 150 times of continuous splices and heats
DC adaptor 12 V voltage, optional multipurpose external battery
Tension test 2.0 N (standard), average 1,96 N (200 gf)
Program test Atmospheric pressure (maximum altitude: 5000 m), temperature and humidity. Automatic calibration by observing distance of the GAP during arc discharge.
Types of splicing mode Auto & Manual
Splicing programs FTTH,SM, MM, DS, NZ-DS, EDF
Storage of splice results 8000 splice results in the internal memory
Interface RS232 interface & video output
Interface languages English
Operation conditions -25 ~ +50°C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude), 15 m/s (maximum allowed wind velocity)
Storage environment -40 ~ +80°C (temperature), 0 ~ 95% (humidity)
DVP-730 dimensions 170 (W) x 140 (H) x 170 (D) mm
DVP-730 weight 3.3 kg
