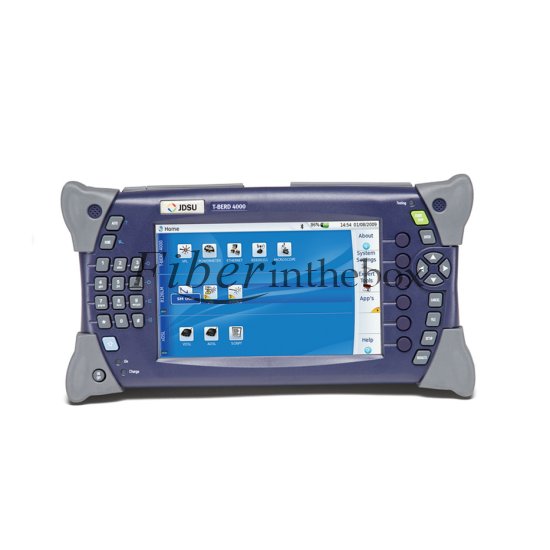

JDSU MTS-4000 Handheld OTDR with E4126MA Module

SKU#:FITB97135WFA
Model#: MTS-4000-E4126MAE
Price: US$ 5,225.00
Sold: 4635
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

Description

The JDSU MTS-4000 OTDR is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access / FTTx networks and triple-play services. Modular in design, the MTS-4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.



Highlights:



Large 7-inch indoor/outdoor color display
Cost-effective, compact and handheld platform
Multi-layer network solution from physical to services layer
Highly scalable with up to 2 field-replaceable modules
Connection checker with VFL, power meter and video inspection scope options
Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet



Key Features:

• Optimized for access/FTTx networks

• Tests up to three wavelengths in one module

• 32/30 dB Dynamic Range at 1310/1550 nm

• High resolution and sho dead zone for distribution fiber qualification

• Automatic traffic detection

• Source and power meter through OTDR po (optional)

• In-service testing dedicated wavelengths (1625 or 1650 nm)

• Automatic macro-bend detection

• Field-replaceable without tools

• Can be combined with PON Power Meter Module in the same T-BERD/MTS-4000 unit

• Up to 128,000 acquisition points with sampling resolution down to 4 cm

• Comprehensive suite of PC software tools for post-processing of test results, including FiberTrace (OFS-100) and FiberCable (OFS-200)



Applications:



Fiber test applications include OTDR, FiberComplete™ Automatic IL/ORL, CWDM Analyzer, PON/FTTH selective power meter , Connector Inspection with IEC Pass/Fail Analysis as well as Visual Fault Locator, Broadband Power Meter and CW light source
Copper test applications include volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz
Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet po
VDSL and ADSL testing using Infineon Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.
Enterprise IT network testing: Basic troubleshooting functionality combined with the advanced capability needed to turn up and maintain modern networks



Family Comparison


Module Central wavelength Pulse width RMS dynamic range        Event dead zone Attenuation dead zone
E4126LM 1310/1550±20 nm 3 ns to 10 μs 34/32dB 1 m 4 m
E4126MAE 1310/1550±20 nm 3 ns to 20 μs 40/38dB <1 m 4.2 m

Design Efficiency

Note: This price is only for module E4126MA with standard accessories, and we can also provide E4126LM. If you are interested in this, please feel free to contact me.

Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this JDSU MTS-4000 OTDR, please feel free to contact us. We will try our best to provide you the best service.

Specifications
Technical (Typical at 25°C)
Display TFT color, 7-in, LCD 800*480,high visibility for outdoors touch screen (12.5cm)
Touchscreen, TFT color,7-in, LCD 800*480, high visibility for outdoors
Storage and I/O Interfaces Internal memory 32MB (1000 test results)
Extended memory (optional) Minimum 1GB (optional
2* USB2.0, 1* RJ45 Ethernet (up to 1Gbps)
WIFI Standard IEEE 802.11 b/g
Blurtooth Class 2, up to 10 m range
Audio interface 2.5 mm jack connector
Ethernet 10/ 100/ 1000 MHz fully-half duplex
Power supply Battery type Standard removable Li lon batteries
AC/DC adapter Input 100-250V, 50-60 Hz
Output 12-15V DC/3.7A
Electrical safety EN 60950 Compaliant
Operation time Up to 11 hours with standard display Telcordia GR-196-CORE
Size and Weight Mainframe with two modules and battery (W*H*D) 260*135*90mm (10.2*5.3*3.5 in)
Mainframe only ( with battery 1.4 kg (3 lb)
Mainframe with one module (with battery) ﹤2 kg (﹤4.35 lb)
Environmental Operating temperature range (no option) -20°C~+50°C (-4°F~+122°F)
Operating temperature range (all options) 0 ~ + 40°C (32 °F~104°F
Storage temperature range -20°C~+60°C (-4°F~+140°F)
Humidity, non-condensing 95%
