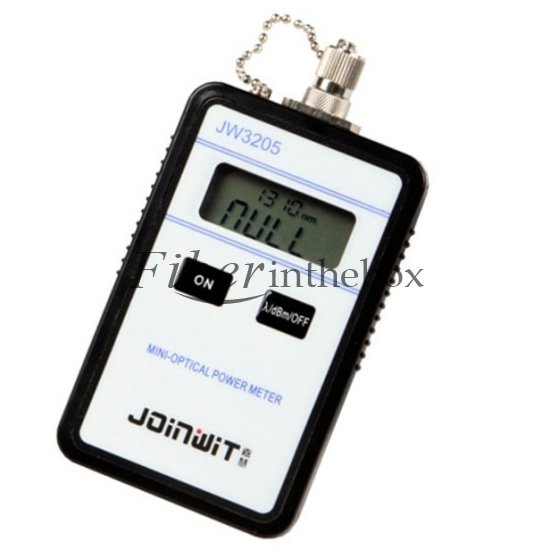

JW3205D Mini handheld optical power meter

SKU#:FITB68426HFQ
Model#: JW3205D
Price: US$ 50.35
Sold: 2001
Availability: In Stock

Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description

JW3205 mini handheld optical power meter is the most lightweight and compact in size testing instrument. It features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. JW3205 optical power meter in combination with the JW3110 mini handheld light source become the most po able and advantageous testing pair.

Features
  • The most compact in Size, ideal for field operation
  • Power measurements in dBm and mw.
  • 10 minutes Auto-off function conserving battery life
Applications
  • Maintenance in Telecom
  • Maintenance CATV
  • Fiber Optic Lab Testing
  • Other Fiber Optic Measurements
Standard Packages
Model Includes
All JW3205 Models JW3205 Optical Power Meter, Alkaline battery, Instruction Manul, Cotton swabs and Protective Holster.



Note: We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.
If you need more than one connector, please contact our sales at  sales@fiberinthebox.com  for more details because the price would be different.



Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new JW3205 power meter at a large quantity.



Specifications



  Type JW3205A JW3205B JW3205C JW3205D
Wavelength(nm) 800~1700nm
Detector InGaAs
Measurement  Range (dBm) -60~+3  -50~+10 -40~+20 -30~+30
Uncertainty ±5%
Calibrated Wavelength(nm) 850,980, 1310, 1550nm
Resolution(dB) 0.01
Optical Connector FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply Alkaline Battery
Battery Operating Time 360 hours with three 1.5V batteries
Operating Temperature(℃) -10 ~ +60
Storage Temperature(℃) -25 ~ +70
Relative Humidity 0 to 95% (non-condensing)
Dimension(mm) 115X60X20
Weight(g) 105
