JW3111-10 Fiber Optical Light Source (1310/1490/1550nm)

Model#: JW3111-10
Price: US$ 280.25
Sold: 2797
Availability: In Stock
Connector Type:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

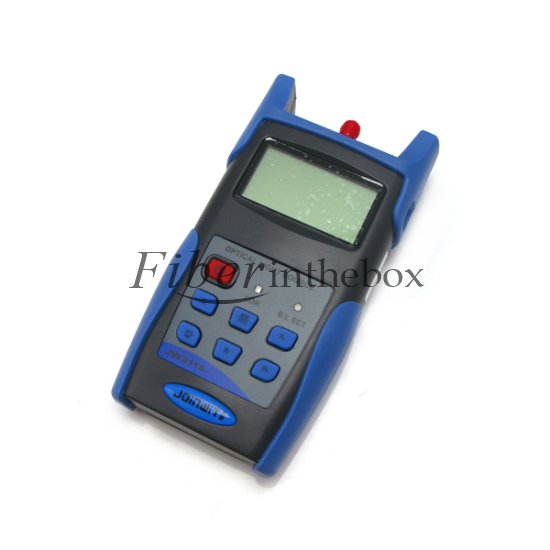

JW3111 optical light source is a handheld optical light source, newly released in 2007. It can provide 1 to 6 wavelengths output to satisfy specific requirements including the 650nm visible light source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer's needs. Together with the JW3211 optical power meter, it is a perfect solution for optical fiber network applications.
Provides 1~6 wavelengths output which can be optional according to customers' needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display suppo s night operation
Low battery power indication
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
JW3111 Handheld Light Source is designed for optimal use with JW3211 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.
Standard Packages
Model Includes
All JW3111 Models JW3111 Optical Light Source, AC Adapter, Instruction Manual, Cotton Tampon and Soft Carrying Case.
Kind Note
This price for JW311-10 light source with1310/1490/1550nm.

Fiberinthebox is your reliable supplier of optical light source, and all of it have been 100% tested before delivery. If you need this optical fiber light source JW3111-10 with 1310/1490/1550nm.  at a large quantity or have any problems or special requirement, please feel free to contact us. We will try our best to provide you the best service.

Type JW3111
Wavelengths(nm) Provides 1~6 Wavelengths (650/ 850/1300/ 1310/1490/ 1550nm) according to needs.
Emitter Type FP-LD,LED
Typical Ouput Power(dBm) 0@650nm / -7 @1310nm,1550nm, -20dBm for LED
Spectral Width(nm) ≤10
0utput Stability ±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies CW.2Hz@650nm / CW, 270Hz, 1KHz, 2KHz@1310nm, 1550nm
Optical Connector FC/PC(Other type adapters can be required)
Power Supply Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time(hour) 45
Operating Temperature(°C) -10~+60
Storage Temperature(°C) -25~+70
Dimension(mm) 190X100X50
