Handheld Fiber Optic Light Source BD203-3 1310/1550nm

SKU#:FITB38546UZS
Model#: BD203-3
Price: US$ 72.20
Sold: 782
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description

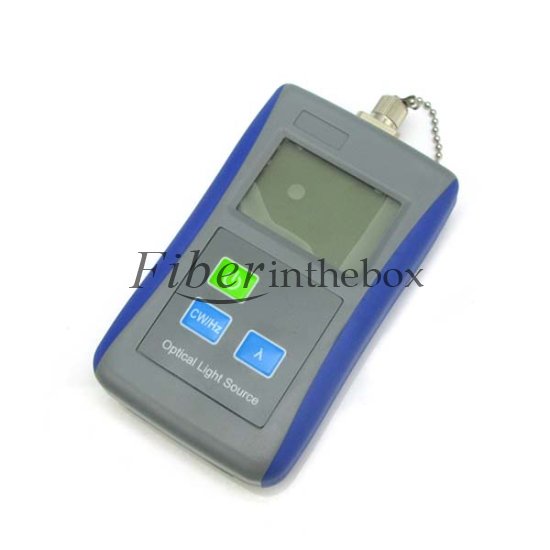

BD203-3 series of high stability of the laser light source is a self-developed instrument, Which features advanced control technology , high output, ultra low-power operation. It can work at 1550nm, 1310nm,single wavelength ,dual-wavelength or tri -wavelength. It can expo a variety of modulation frequency (CW, 270HZ, 1KHZ, 2KHZ). It is widely used in optical communication, optical measurement, optical fiber sensing, and so on.
Features
Good stability in output power
Optional auto-shutdown
Large LCD display and backlight
Battery power display
Application
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Accessories
Standard Optional
FC/PC,SC/PC,ST/PC connectors , Manual, Carrying Bag, and Battery. APC for FC/ST/SC Connectors,AC/DC Adapter
Optional Adapters
FC/PC male -ST/APC female Adapter
FC/PC male -SC/APC female Adapter
FC/PC male -FC/APC female Adapter
FC/PC male -LC/PC female Adapter
Kind Note
 This price is only for BD203-3 with two wavelength (1310 & 1550nm), and we can also provide BD203 with other wavelengths.



Fiberinthebox is your reliable supplier of optical light source, and all of it have been 100% tested before delivery. And we even provide one year warranty for that. If you have any problems or special requirement or want to buy this BD203-2 optical fiber light source with 1310&1550nm at a large quantity, please feel free to contact us. We will try our best to provide you the best service.
View Detailshttps://www.Fiberinthebox.com

Specifications
Type BD203-3
Emitter Type FP-LD
Wavelength(nm) 1310,1550
Optical Connector FC(SC/ST can be optional)
Output Power (dBm) ≥ 3m w @ 650nm; ≥ -7dBm @ 850/1300nm
≥ -7,-3,0dBm @ /1490/1550/1625nm
Output Stability (dB) ±0.04@20°C@15min
Modulation Frequencies CW,2Hz@650nm;CW,270Hz,1KHz,2KHz@others
Fiber Type SM,MM
Power Supply AAA 1.5V(3pcs batteries)
working time (h) 40
Operating Temperature (°C) -10~+50
Storage Temperature (°C) -20~+70
Dimension (mm) 125(L)*65(W)*29(H)
Weight (g) 160
