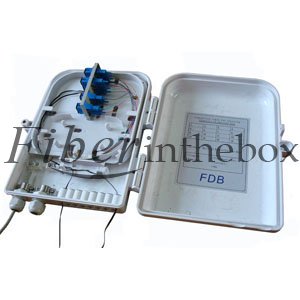

FDB-16 Fiber Splitter Distribution Box
FTT-FDB16 Type Optical Termination Box is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input po s and 16 output po s on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
Note: This box does not come with any adapters, pigtails and fiber splitters. If you need them, we can install them for you with few charges.
Features
User familiar industry interface, using high impact plastic PC/ABS Can accommodate 1x16 bare fiber PLC splitter Can put out 16 fiber cable Ultra violet resistant and rainfall resistant Up to 16 FTTH drops Wall and pole mountable 2 inlet po s, 16 outlet po s Dimensions: 320*260*90mm
Applications
Specifications
| ITEM |
Data sheet
|
|
| Dimensions |
L : 320mm, W: 260mm, H : 90mm
|
|
| Weight |
3kg
|
|
| Cable input po |
Max. 2 po s (Max. dia. : 12mm)
|
|
| Cable output capacity |
Max. 16 po s (Max. dia. : 3mm)
|
|
| Max. Capacity |
16 core
|
|
| Operation Temperature |
-40 ~ +85 ℃
|
|
| Other parameter | Tensile strength |
≥ 450 kg/cm2 , @10mm/min
|
| Impact Strength |
35 kgcm/cm2 (normal temp.), 10 kgcm/cm2 (-30℃ )
|
|
| Flexural strength |
≥ 450 kg/cm2 , @10mm/min
|
|
