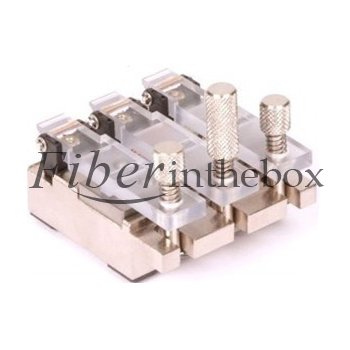

ILSINTECH VGI Series V-Groove Fiber Aligner

SKU#:FITB22259TAB
Model#: VGI-SERIES
Price: US$ 822.70
Sold: 3082
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Features
1. Suitable for all types of fiber (single fiber or ribbon fiber) temporary connection
2. Suitable for 0.9mm to 0.25mm diameter fiber cladding
3. Typical connection loss 0.25dB (SM fiber with matching gel)
4. Easy operation
Specifications
1. Application (Fiber type):
VGI-SERIES-01: 0.25 ~ 0.25mm
VGI-SERIES-02: 0.9-0.9mm
VGI-SERIES-03: 0.9 ~ 0.25mm
2. Dimensions: 50x50x50mm
3. Weight: 350g
Operation (step by step)
1. Stripping the fibers
2. Cleaning the fibers
3. Cleave the fibers
3. Aligning the fibers in V groove

This V-slot fiber aligner is used to make a temporary fiber link that facilitates OTDR and Optical Power Meter measurement, which has a light source and power meter-based loss measurement and bare fiber reel testing for confirming transmission capability. Welcome to contact us if you have any questions of this ILSINTECH VGI Series V-Groove Fiber Aligner, we will provide you the best service.
