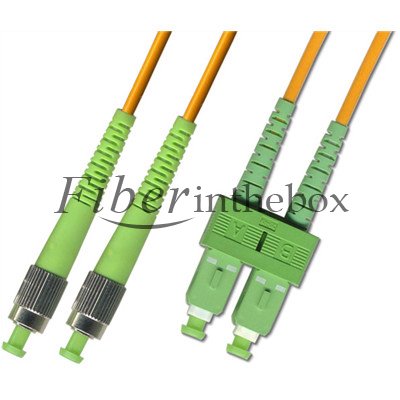

FC/APC to SC/APC Plenum Duplex 9/125 Single-mode Fiber Patch Cable

SKU#:FITB88120JOD
Model#: SM-FCA-SCA-PDX-FITB
Price: US$ 16.50
Inventory changes frequently, please kindly contact us at service@fiberinthebox.com before placing an order
Sold: 373
Availability: In Stock
Length:
Cable length could be customized in any length as you required.

Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-199US$ 16.50 200-299US$ 16.17 300-499US$ 15.84 500-999 Sign in to view 1000+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Plenum Patch Cable
Plenum-rated optical fiber cables are different from other types of cabling by the special types of plastics used in the optical fiber cable jackets. Because plenum cables are routed through air circulation spaces, which contain very few fire barriers, they need to be coated in flame-retardant, low smoke materials. These plastics offer good resistance against possible fire, and in the event that they do begin to burn, they will not emit large quantities of harmful fumes.

 FC/APC to SC/APC Plenum Duplex 9/125 Single-mode Fiber Patch Cable
Plenum Fire Rated 9/125 fibre cables provide a low cost option for gigabit ethernet network applications. Plenum rated cables are used for running in walls and air plenums without the use of conduit. Each cable is tested for optical integrity and loss prior to packaging to ensure proper data transmission. The durable rubber boots protects against damage typical in busy data racks and each end is properly labelled for easy identification. Our Plenum Fire Rated 9/125 fibre cables are available in custom lengths with just 1-2 days turnaround time from our professional production facilities.

Features
Connector 1: FC/APC
Connector 2: SC/APC
Ceramic Ferrules
Corning Fiber & Cladding
Immune to electrical interference
100% optically inspected and tested for inse ion loss
Jacket: OFNP (Plenum-rated)
RoHS Compliant


Specifications
Inse ion Loss: 0.3db
Return Loss: 55db
Buffer OD: 900 micron
Attenuation: 850 nm: 3.5 dB/ km or at 1300 nm: 1.0 dB/ km
Core/cladding diameter: 9/125μm
Strand Count: Duplex (2-Strand)
Jacketing: Plenum Rated (OFNP)

Applications
Fiber Network Deployments
Fast Ethernet
Gigabit Ethernet
Other Data Applications Requiring High Transfer Rates


We are manufacturer and supplier of plenum optical fiber cables and plenum optical fiber patch cords, types include SC/APC, FC/APC, LC/APC, ST/APC, MU/APC, MTRJ/APC, E2000/APC, etc, both single mode and multimode plenum rated optical fiber cable assemblies available. Any questions, please feel free to contact us at sales@fiberinthebox.com .
