12 Fibers Single-mode Stranded Loose Tube Type ADSS Cable with PE Sheath Span 800M - Fiberinthebox

SKU#:FITB37111MPV
Model#: ADSS-12-SM-PE-800
Price: US$ 4.28 ( Per Meter )
Sold: 743
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

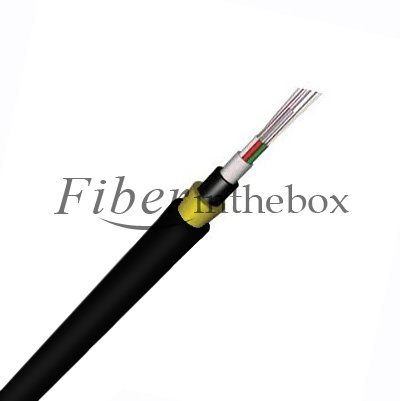

12 Fibers Single-mode Stranded Loose Tube Type ADSS Cable with PE Sheath Span 800M - Fiberinthebox
The price on the website is per meter price. The more, the cheaper.
The 12 Fibers Single-mode Stranded Loose Tube Type ADSS Cables from Fiberinthebox are ideal for installation in distribution as well as transmission environments, even when live-line installations are required . As its name indicates, there is no suppo or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a optical fiber network .Fiberinthebox manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred .
Features
In all cases aramid yarns provide the strength Cable is non-metallic, may be installed on live system, reducing installation cost significantly Also used as temporary repair Precise fiber excess length control ensuring the fibers free from stress when the cable is subject to the maximum design load Precise control of pay-off tension and the stranding lay of aramid yarn enhancing the tensile strength of the cable Employing the material with excellent tracking resistance, offering more safety in high inductive potential environment Special ADSS cable can be designed on customers' request
Installation
loose tube fiber Non-metallic central strength member Jelly filling in the tube and core PE inner sheath Well-distributed stranding aramid yarn and anti-tracking outer sheath Installed on the same poles/towers of the electric power transmission line Also can be lashed to the ground wire or wrapped around it
Specification
Fiber Type Single-mode
Fiber Core Diameter 8.2μm
Wavelengths 1310nm /1550nm
Fiber Count 12
Environment Special Outdoor Cables
Application Used in medium and high voltage lines
Cable Type Loose Tube
Optical unit position In the eccentric of the cable
Cable Diameter Φ15.3mm
Weight 185kg/km
Rated Tensile Strength(RTS) 57KN
Modules 18.5KN/mm2
Thermal Expansion Coefficient 0.2×10-6/℃
Storage Temperature -40°C to 70°C
Installation Temperature -10°C to 60°C
Operation Temperature  -40°C to 70°C

Span

800m
Custom Information
Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified Sheath Material: PE, AT or custom specified Cable Length: Custom specified
