48 Fibers Single-mode All-Dielectric Loose Tube Outdoor Cable

SKU#:FITB05662HBO
Model#: FC-OLT-SMAD-48
MFG PART#: FC-OLT-SMAD-48
Price: US$ 1.14 ( Per Meter )
Sold: 2045
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1.14 10-19US$ 1.11 20-49US$ 1.09 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

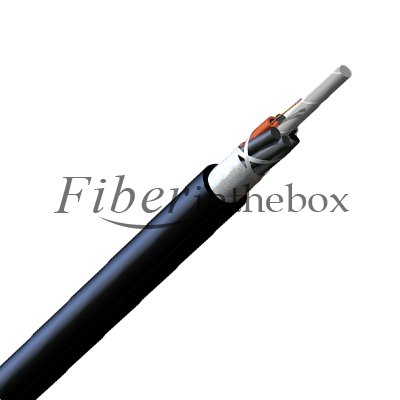

48 Fibers All-Dielectric Loose Tube Outdoor Cable
The price on the website is per meter price. The more, the cheaper.
The 48 Fibers All-Dielectric Loose Tube Outdoor Cables from Fiberinthebox are designed for outdoor and limited indoor use for campus backbones in lashed aerial and duct installations. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. This all-dielectric cable is fully waterblocked using craft-friendly, water-swellable materials.With a medium-density polyethylene jacket, the cable is rugged, durable and easy to strip while providing superior protection against UV radiation, fungus, abrasion and other environmental factors. They are designed in accordance with applicable industry technical specifications, standards and references.
Features
Small diameter & light weight extend installation lengthExclusive Color-coded fibers, quick and easy identificationSuitable for aerial lashed, duct, & direct buried installation Easy handling Longer cable life
Specification
Fiber Type Single-mode
Fiber Core Diameter 8.2μm
Wavelengths 1310nm / 1550nm
Fiber Count 48
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Sho -Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 158mm
Min. Bend Radius Operation 105mm
Weight 73kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
