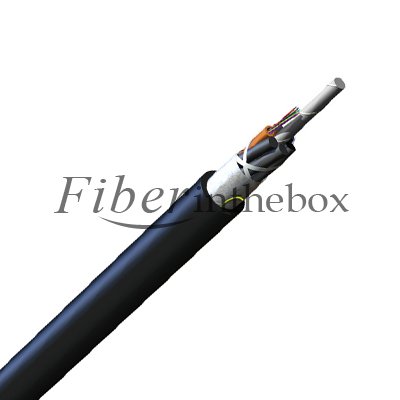

8 Fibers Single-mode Gel-Filled Loose Tube Outdoor Cable

SKU#:FITB91108NBR
Model#: FC-OLT-SMLT-8
MFG PART#: FC-OLT-SMLT-8
Price: US$ 0.40 ( Per Meter )
Sold: 3582
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 0.40 10-19US$ 0.40 20-49US$ 0.39 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
8 Fibers Single-mode Gel-Filled Loose Tube Outdoor Cable
The price on the website is per meter price. The more, the cheaper.
The 8 Fibers Single-mode Gel-Filled Loose Tube Outdoor Cables from Fiberinthebox design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical. The loose tubes contain optical fibers color coded as per color coding scheme.The cable protected by a black PE outer jacket, suitable for duct or aerial application. With the PE outer jacket, this cable is rugged, durable and easy to strip while providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
Features
Small diameter & light weight, easy to routeExclusive Color-coded fibers, quick and easy identificationProper design, precise control for fiber excess length Easy handling Longer cable life
Specification
Fiber Type Single-mode
Fiber Core Diameter 8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 8
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Sho -Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 158mm
Min. Bend Radius Operation 105mm
Weight 80kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
Specifications
Fiber Type Single-mode
Fiber Core Diameter 8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 8
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Short-Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 158mm
Min. Bend Radius Operation 105mm
Weight 80kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
