122 Fibers Single-mode Double-Jacket Loose Tube Outdoor Cable

SKU#:FITB30668FEZ
Model#: FC-OLT-SMDJ-122
MFG PART#: FC-OLT-SMDJ-122
Price: US$ 2.72 ( Per Meter )
Sold: 3053
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 2.72 10-19US$ 2.66 20-49US$ 2.61 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

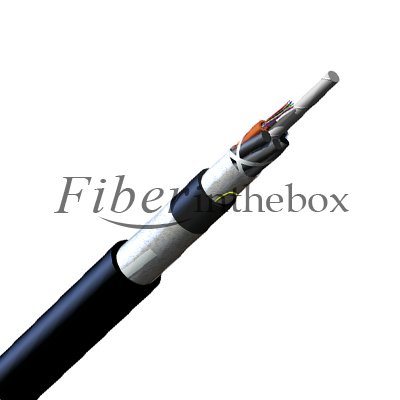

122 Fibers Double-Jacket Loose TubeOutdoor Cable
The price on the website is per meter price. The more, the cheaper.
The 122 Fibers Double-Jacket Loose Tube Outdoor Cables from Fiberinthebox are designed for duct and aerial (lashed) installation. The loose tubes are filled with a water-resistant filling compound, andthe loose tube design offers reliable transmission performance over a broad temperature range.With two medium-density polyethylene jackets, this cable is an excellent choice for applications requiring the added mechanical and environmental protection, and it is rugged, durable and easy to stripwhileproviding superior protection against UV radiation, fungus, abrasion and other environmental factors.
Features
Small diameter & light weight extend installation lengthExclusive Color-coded fibers, quick and easy identification Suitable for aerial lashed, duct, & direct buried installation Easy handling Longer cable life
Specification
Fiber Type Single-mode
Fiber Core Diameter 8.2μm
Wavelengths 1310nm /1550nm
Fiber Count 122
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Sho -Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 188mm
Min. Bend Radius Operation 125mm
Weight 107kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
Specifications
Fiber Type Single-mode
Fiber Core Diameter 8.2μm
Wavelengths 1310nm /1550nm
Fiber Count 122
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Short-Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 188mm
Min. Bend Radius Operation 125mm
Weight 107kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
