24 Fibers Multimode Plenum Loose Tube Indoor/Outdoor Cable

SKU#:FITB35190PRO
Model#: IO-PLT-MM-24-FITB
Price: US$ 1.52 ( Per Meter )
Inventory changes frequently, please kindly contact us at service@fiberinthebox.com before placing an order
Sold: 3089
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1.52 10-19US$ 1.49 20-29US$ 1.46 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

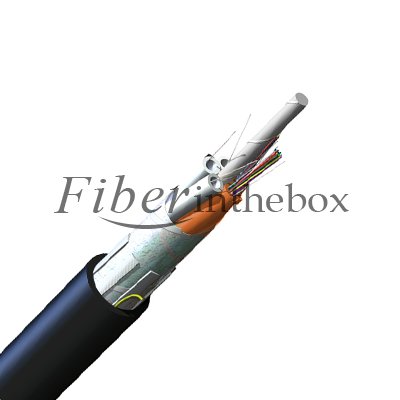

24 Fibers Multimode Plenum Loose Tube Indoor/Outdoor Cable
The price on the website is per meter price. The more, the cheaper.
The 24 Fibers Multimode Plenum Loose Tube Indoor/Outdoor Cables from Fiberinthebox are flame-retardant and plenum-rated cables suitable for installation in interbuilding and intrabuilding backbones in aerial, duct and riser or plenum applications. The plenum rating of this cable eliminates the need to transition splice when entering the building and minimizes routing restrictions once inside the building. The loose tube design offers mechanical ruggedness and environmental durability while the all-dielectric cable construction requires no grounding or bonding. The cables use dry waterblocking technology within the tubes and under the cables’ jacket. They are the fire-rated cables designed to withstand the rigors of the outside plant environment.
Features
Color-coded fibers, quick and easy identificationAll-dielectric construction requires no grounding or bonding Compact, water blocked, plenum rated, flexible loose tube design of all dielectric construction allows for installation in any outside plant or interior space. Plenum rating enables installation to go directly from outside plant to riser shaft or through plenum spaces Small diameter and bend radius facilitate installation in tight spaces Loose tube plenum design provides maximum cable route flexibility
Specification
Fiber Type Multimode
Fiber Core Diameter 50/125, 62.5/125µm
Wavelengths 850nm/1300nm
Fiber Count 24
Environment Indoor/Outdoor Cables
Application Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type Loose Tube
Flame Rating Plenum (OFCP)
Tight Buffer Color Blue, Orange
Outer Jacket Color Black
Max.Tensile Strengths,Sho -Term 2700N
Max.Tensile Strengths,Long-Term 810N

Min. Bend Radius Installation

167mm

Min. Bend Radius Operation 111mm
Weight 127kg/km
Storage Temperature -40°C to 70°C
Installation Temperature -10°C to 60°C

Operation Temperature

-40°C to 70°C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
