Max. 144 Fiber Fusion Splices SMC Fiber Optic Cross Connection Floor Mount Cabinet

Description

This Fiber Distribution Box has an IP 65 rating so it can be used both outdoors as well as indoor scenarios.
This kind of Fiber Distribution Box belongs to ourdoor using, and especially designed for outdoor optical nodes in access network. In ce ain situations, it is necessary to mount this box on the exterior of a building or a telecommunication pole. The Fiber Distribution Box needs to beeasily accessible and manageable in size. The dimension could be customized by client.
If necessary, the box can be locked to keep the splices secure.

Application

This floor-standing fiber distribution box is used in buildings to splice incoming outside plant cables to outgoing customer premises cables

Features

Robust modular construction Available with Lock & Keys Maximum 12 splice trays ( 144 fibers) Protection class IP65, impo ed cabinet body with high intensity and anti-erosion performance. It is able to counter abrupt climate change and influences of extreme environment. The hinged cover can be locked open up to 120º Adapter panel slants on the operation facia which will prevent it from being scotched by light as well  ensuring the curve radius of the optic fiber Built-in direct splice unit is capable for providing direct connection function Keeps the cables and connections safe and secure from unauthorized tampering Multiple installation options,including floor and wall installations With secure and reliable fastening and grounding protection devices for the optic fiber Applicable to strap-shaped and non-strap shaped fibers Leaves room for excess cable storage

Material

Box is made of SMC material Color: Body Grey Work Temperature: -45-+85°C Relative humidity:≤85%(+30°C) Atmospheric pressure: 70~106 KPa Returnloss:≥45dB (PC),55dB(UPC),60dB(APC) Isolation resistance(between frame and protection grounding):>1000 MOHM /500V(DC)

Dimension

Outside dimensions: 1035*550*300 mm (L x W x D)

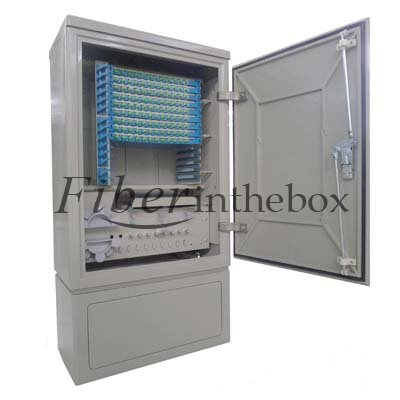

Sample Pictures



                                                                                                     This price is not including the Splice Tray
