Max. 576 Fiber Fusion Splices SMC Fiber Optic Cross Connection Cabinet with Single-sided Center Opening

Description

This product is designed for the connection between the Optical fiber cable and the main points, and it is a kind of po device. It has the function of direct or indirect connection, coiling, storage, and dispatching on the fiber cable .
Cabinets are made of double side wiredrawing stainless steel, with the protection grade reaching IP65.thermosetting fiberglass-reinforced polyester can endure climate changes and adverse environment. All front access. Modular design; Flexible configuration and quick installation ; Suitable for ribbon and no ribbon optic fibers;30 °oblique installation of adapters, preventing eyes from laser's hu s and ensuring the fiber bending radius; Suitable for inse ing installation of SC, FC,ST(additional flange) adapters; The bending radii are ensured to be more than 40mm in anyplace. Reliable fiber introduction, grounding and fixing; Swpa convenient; Suitable fiber integrated and optical fibers; A special suspension mechanism is designed to enable ground mounted, wall-mounted or aerial for users'requirement. The dimension could be customized by client.
If necessary, the box can be locked to keep the splices secure.

Specifications

Fiber Optic Cross Connect Cabinet 1.Adopt the 1.2mm stainless steel. 2.Capacity: 5769601150cords 3.IP 65

Material

Box is made of SMC material Color: Body Grey

Technical Parameters

1.The fiber fixation and protection function Fiber inlet, fixation and protection device should be provided. The fibers will be protected from being damaged when they are let in and fixed in the frame through these devices. The metal pa s of the cables are insulated from the machine. The metal jacket of the cable & the reinforced core should be connected with the high voltage protective ea hing device after being fixed; 2.The termination & connection function Termination device should be provided, which is used for the connection operation, construction, installation & maintenance. It could fix and protect the connector and make sure the connector even but not displaced and free from external influence, guarantee the coiled fibers and pigtails not damaged.

Specification

Outside dimensions: 600x445x235mm(L x W x D) Net. Weight: 40KG.

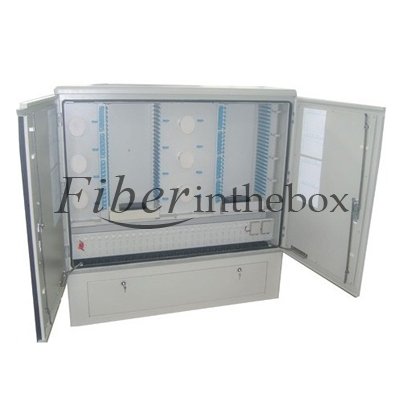

Sample Pictures



                                                                                                     This price is not including the Splice Tray
