96 Fibers Multimode Unitized Tight-Buffered Riser Indoor Cable

SKU#:FITB73418WBZ
Model#: FC-ITB-MMUR-96
MFG PART#: FC-ITB-MMUR-96
Price: US$ 6.89 ( Per Meter )
Sold: 3470
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 6.89 10-19US$ 6.75 20-29US$ 6.61 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

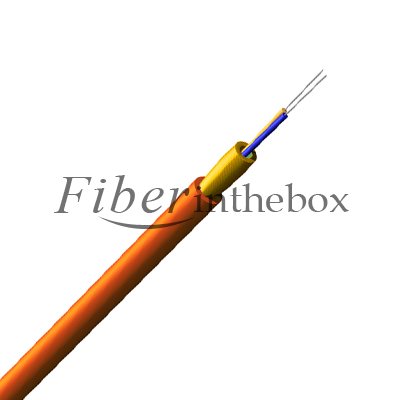

96 Fibers Multimode Unitized Tight-Buffered Riser Indoor Cable
The price on the website is per meter price. The more, the cheaper.
The 96 Fibers Multimode Unitized Tight-Buffered Riser Indoor Cables from Fiberinthebox are designed for use in riser and general purpose environments for intrabuilding backbone installations. These multifiber cables use individually jacketed buffered fibers enabling easy, consistent stripping and facilitating termination. The 6 or 12-fiber subunits allow quick and easy identification and are surrounded by dielectric strength members and protected by a flame-retardant outer jacket. The all-dielectric construction of this cable makes it ideal for routing inside buildings including riser shafts, to the telecommunications rooms and workstations. This cable meets the application requirements of OFNR (Optical Fiber Nonconductive Riser).
Features
Tight-Buffered fibers, easy to stripSeveral subunits, quick and easy identificationFlame-retardant jacket, rugged and durable under stressAll-dielectric construction, requires no grounding or bonding
Specification
Fiber Type Multimode
Fiber Core Diameter 50μm/62.5μm
Wavelengths 850nm/1310nm
Fiber Count 96
Environment Indoor Cables
Application General Purpose Horizontal, Ve ical
Cable Type Tight-Buffered
Flame Rating Riser (OFNR)
Tight buffer color subunit Blue, Orange, Green, Brown, Slate, White
Max. Tensile Strengths, Sho -Term 1320N
Max. Tensile Strengths, Long-Term 400N
Min. Bend Radius Installation 222mm
Min. Bend Radius Operation 148mm
Weight 186kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -10 °C to 60 °C
Operation Temperature -20 °C to 70 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: 2 ~ 288 fibers or custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
Specifications
Fiber Type Multimode
Fiber Core Diameter 50μm/62.5μm
Wavelengths 850nm/1310nm
Fiber Count 96
Environment Indoor Cables
Application General Purpose Horizontal, Vertical
Cable Type Tight-Buffered
Flame Rating Riser (OFNR)
Tight buffer color subunit Blue, Orange, Green, Brown, Slate, White
Max. Tensile Strengths, Short-Term 1320N
Max. Tensile Strengths, Long-Term 400N
Min. Bend Radius Installation 222mm
Min. Bend Radius Operation 148mm
Weight 186kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -10 °C to 60 °C
Operation Temperature -20 °C to 70 °C
