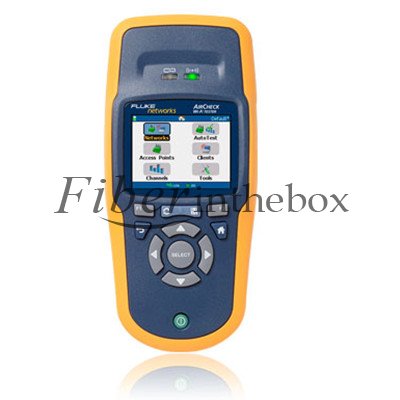

Fluke Networks AirCheck Wi-Fi Tester ES2-PRO-SX/I-ACK

SKU#:FITB18605ZZO
Model#: ES2-PRO-SX/I-ACK
Price: US$ 26,600.00
Sold: 1466
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description

AirCheck Wi-Fi Tester is a simple-to-use, handheld wireless tester that allows users to quickly verify and troubleshoot 802.11 a/b/g/n network availability, connectivity, and security all in a dedicated, handheld tool. Its intuitive interface allows you to quickly see wireless network usage and easily determine if it's Wi-Fi traffic or non- Wi-Fi interference. AirCheck helps you audit your wireless environment to identify and locate APs whether authorized or rogue (unauthorized). The tester fully documents your troubleshooting session and creates professional-quality repo s. Use these repo s to close your trouble ticket or to provide the required information to escalate the ticket to the next level. AirCheck provides the information you need to quickly solve your frontline Wi-Fi problems.

Features
• Dedicated, handheld 802.11 a/b/g/n tester with instant-on technology
• Fully suppo s 2.4 and 5.0GHz frequency bands
• Rapidly perform a Wi-Fi discovery to fully assess your current wireless security settings and network availability
• See what's using your Wi-Fi network by channel and quickly determine if it is 802.11 traffic or non-802.11 interference
• Robust and in-depth WLAN connection tests - from probing to DHCP request to ping
• Quickly identify and locate access points whether authorized or rogue
• Fully documents your troubleshooting session – enabling fast trouble ticket resolution or problem escalation
Family Comparison:
Model Number/Name Comparison Details (Accessories Description)
AirCheck AirCheck Wi-Fi Tester includes: AirCheck tester with Lithium Ion battery, USB cable, soft case, Getting Sta ed Guide, CD with AirCheck Manager software and CD with AirCheck User Manual
ACK-LRAT2000 Network Tech Troubleshooting Kit w/ACK,LRAT-2000 includes: AirCheck tester, LinkRunner AT 2000 tester, AirCheck external directional antenna, spare Li-ion battery for either AirCheck or LinkRunner, IntelliTone Pro 200 probe, WireView 2-6 cable ids, LinkRunner AT holster, AirCheck holster and deluxe carrying case
AirCheck – LE AirCheck Wi-Fi Tester for Law Enforcement includes: AirCheck tester, AirCheck holster, External directional antenna, Auto charger and AirCheck Getting Sta ed Guide for Law Enforcement
ACK-LRAT-CIQ Ultimate Network Tech Troubleshooting Kit w/ACK,LRAT-2000,CIQ includes: AirCheck™ tester, LinkRunner AT 2000 tester, AirCheck external directional antenna, spare Li-Ion battery for either AirCheck or LinkRunner, IntelliTone Pro 200 probe, WireView 2-6 cable ids, LinkRunner AT holster, AirCheck holster and deluxe carrying case and CableIQ™ Qualification tester.
ES2-PRO-SX/I-ACK EtherScope Series 2 LAN WLAN SX Fiber ITO + AirCheck including: EtherScope Series 2 LAN and WLAN with fiber and ITO options; and AirCheck Wi-Fi Tester
ES2-PRO-SXI-LR-ACK EtherScope E S2 LAN WLAN SX Fiber ITO + LRPRO + AirCheck-Kit including: EtherScope E Series 2 LAN and WLAN with fiber and ITO options; LinkRunner Pro with Reflector, Lithium Ion battery, and software case; and AirCheck Wi-Fi Tester with extra Lithium Ion battery, directional antenna and hard case
Picture details
Specifications
Environmental
Operating temperature and relative humidity 32ºF to 113ºF (0ºC to +45ºC)
Note: The battery will not charge if the internal temperature of the tester is above 113ºF (45ºC)
Operating relative humidity (% RH without condensation) 90% (50ºF to 95ºF; 10ºC to 35ºC)
75% (95ºF to 113ºF; 35ºC to 45ºC)
Storage temperature E20 to A1:B31ºC to C19+60ºC)
Shock and vibration Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test
Safety EN 61010-1 2nd edition
Altitude Usage up to: 4,000 m; Storage: 12,000 m
EMC FCC Part 15 Class A, EN 61326-1
Certifications and compliance
  Conforms to relevant European Union directives
  Listed by the Canadian Standards Association
  Conforms to relevant Australian standards
  Conforms to FCC Rules, Parts 15.107, 15.109
General
Dimensions 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm)
Weight 14 oz (0.4 kg)
Battery Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs)
Battery life Typical operating life is 5.5 hours. Typical charge time is 3 hours.
External AC adapter/charger AC input 90-264 Vac 48-62 Hz input power DC output 15 Vdc at 1.2 amps
Display 2.8 in color LCD (320 x 240 pixels)
Keypad 12-key elastomeric
LEDs 2 LEDs (transmit and link Indicators)
Host interface USB 5-pin mini-B
Wireless antenna Internal
External antenna port Input only. Reverse-polarity SMA connector.
Wireless
compliance IEEE 802.11a, 11b, 11g, 11n
Receive Channel Frequencies 2.4 GHz Band*
2412-2484 MHz (Channel 1 to Channel 14) 5 GHz Band*
5170-5320 MHz, 5500-5700 MHz, 5745-5825 MHz (Channels 34, 36, 38, 40, 42, 44, 46, 48, 52, 56, 60, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165)*Notes:
1. AirCheck receives on all of these frequencies in every country.
2. These are the center frequencies of the channels that AirCheck supports.
Transmit Channel Frequencies 2.4 GHz Band**
802.11b
2412-2484 MHz (Channel 1 to Channel 14)802.11 g/n 20 MHz BW (HT20)
2412-2472 MHz (Channel 1 to Channel 13)802.11n 40 MHz BW (HT40)
2422-2462 MHz (All legal bonded channel pair combinations) 5GHz Band**
802.11 a /n 20 MHz BW (HT20)
5180-5320 MHz, 5500-5700 MHz, 5745-5825 MHz (Channels 36, 40, 44, 48, 52, 56, 60, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165)802.11 n 40 MHz BW (HT40)
5190-5310, 5510-5670, 5755-5795 (All legal bonded channel pair combinations)**Notes:
1. AirCheck transmits only on frequencies allowed in the country where it operates.
2. These are the center frequencies of the channels that AirCheck supports.
Regulatory Domain World Mode, 802.11d compliant
External Directional Antenna
Frequencies Frequency range 2.4 GHz to 2.5 GHz and 4.9 to 5.9 GHz Minimum gain 5.0 dBi in the 2.4 GHz band and 7.0 dBi in the 5 GHz band
Connector Reverse-polarity SMA plug
