2 Fibers Single-mode LSZH with FRP Strength Member FTTH Armored Duct Cable

SKU#:FITB57099YLR
Model#: FTTH-A-FRP-LSZH-SM-2-FITB
Price: US$ 0.44 ( Per Meter )
Sold: 1930
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

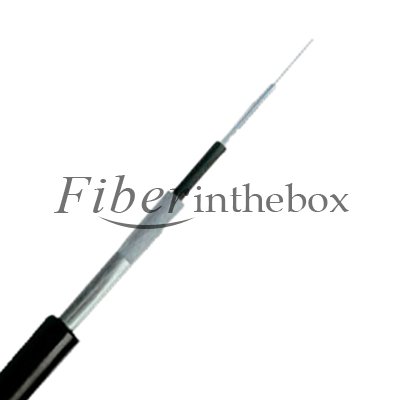

2 Fibers Single-mode LSZH with FRP Strength Member FTTH Armored Duct Cable
The price on the website is per meter price. The more, the cheaper.
The 2 fibers single-mode FTTH Armored Duct cables from Fiberinthebox are designed for use in direct installation in villas and multi dwelling units. With two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. There was a layer of skin resistance hose and a layer of aluminum tape armored, let the cable can adapt to all kinds of bad environment and a ificial damage. External and internal jacket can makes the cables have excellent crush and impact resistant prope ies.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y Novel flute design, easily strip and splice, simplify the installation and maintenanceSimplify installation and maintenance Simple structure, lightweight and high practicabilityGood water resistance material to prevent cable water penetration With high flame resistance and high tensile capacityLonger cable life Low smoke, halogen-free materials, environmental protection, and goog flame resistanceTwo sheath to protect the FTTH Duct cables from Rat bit and other damage
Specification
Fiber Type Single-mode
Fiber core diameter  8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 2
Environment FTTH Duct Armored Cables
Attenuation  ≤0.45dB/km (@1310nm)
≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term 60N
Max. Tensile Strengths, Long-Term 30N
Max. Crush Resistance, Sho -Term  1500N
Max. Crush Resistance, Long-Term 600N
Static Bending Radius 10mm
Dynamic Bending Radius 20mm
Diameter(mm)  7

Armored

APL
Sheath Material  LSZH
Jacket Color  Black
Weight 50kg/km
Storage/Operating Temperature -10°C to +70°C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
