1 Fiber Single-mode LSZH with KFRP Strength Member FTTH Armored Duct Cable

SKU#:FITB63296WFY
Model#: FTTH-A-KFRP-LSZH-SM-1-FITB
Price: US$ 0.45 ( Per Meter )
Sold: 1023
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

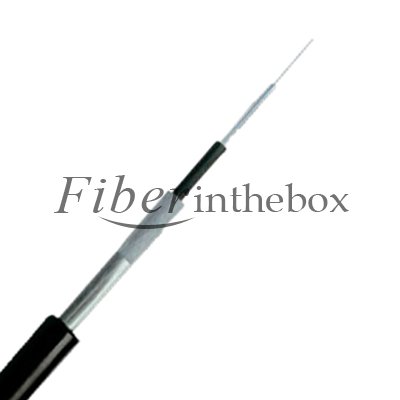

1 Fiber Single-mode LSZH with KFRP Strength Member FTTH Armored Duct Cable
The price on the website is per meter price. The more, the cheaper.
The 1 fiber Single-mode FTTH Armored Duct cables from Fiberinthebox are designed for use in direct installation in villas and multi dwelling units. With two parallel KFRP strength members ensure good performance of crush resistance to protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. There was a layer of skin resistance hose and a layer of aluminum tape armored, let the cable can adapt to all kinds of bad environment and a ificial damage. External and internal jacket can makes the cables have excellent crush and impact resistant prope ies.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y Novel flute design, easily strip and splice, simplify the installation and maintenanceSimplify installation and maintenance Simple structure, lightweight and high practicabilityGood water resistance material to prevent cable water penetrationWith high flame resistance and high tensile capacityLow smoke, halogen-free materials, environmental protection, and goog flame resistanceTwo sheath to protect the FTTH Duct cables from Rat bit and other damageLonger cable life
Specification
Fiber Type Single-mode
Fiber core diameter  8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 1
Environment

FTTH Duct Armored Cables

Attenuation  ≤0.45dB/km (@1310nm)
≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term 60N
Max. Tensile Strengths, Long-Term 30N
Max. Crush Resistance, Sho -Term  1500N
Max. Crush Resistance, Long-Term 600N
Static Bending Radius 10mm
Dynamic Bending Radius 20mm
Diameter(mm)  7

Armored

APL
Sheath Material  LSZH
Jacket Color  Black
Weight 52kg/km
Storage/Operating Temperature -10°C to +70°C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
