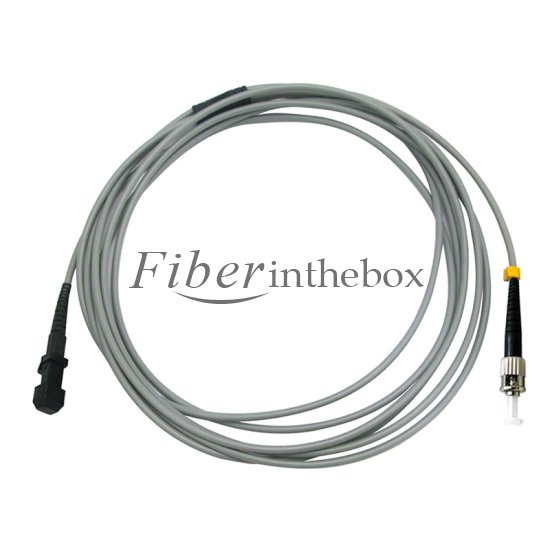

ST/UPC to MTRJ/UPC Simplex Multimode 62.5/125 OM1 Armored Patch Cable

SKU#:FITB77523JWY
Model#: OM1-ST-MTRJ-SXAM-FITB
MFG PART#: OM1-ST-MTRJ-SXAM-3M-FS
Price: US$ 5.89
Sold: 1775
Availability: In Stock
Length:
Cable length could be customized in any length as you required.

Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-99US$ 5.89 100-299US$ 5.77 300-499US$ 5.65 500-999 Sign in to view 1000+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
ST/UPC to MTRJ/UPC Simplex Multimode 62.5/125 OM1 Armored Patch Cable

Armored patch cable can be deployed directly in different harsh environment, without additional tube for protection, save space, reduce construction cost, and make the maintenance more conveniently. This Simplex Multimode Armored Standard optical fiber cable constructed with highest quality components for unmatched durability and reliability. With a Standard Boot on each end. This cable is appropriate for use in data centers and networks with 10G ST applications.

With OFNR (Riser)/OFNP(Plenum) and 3.0mm thickness, this Armored Fiber Optic cable is specifically designed for light to medium duty indoor/outdoor applications. Its rugged shell with steel and kevlar is 10 times stronger than regular Fiber Optic Cable and has a 40% higher rated range of operating temperature. Deploy this cable in environments where networking equipment undergo repeated abuse.

Fiberinthebox Multimode 62.5/125 armored patch cable provide 1Gigabit data transfer speeds in high bandwidth application, up to 5 times faster than standard 62.5/125um fiber patch cable. With Fiberinthebox good development, we can offer more and more competitive price on a relatively higher-end heavy armored patch cables.

Features
Stainless steel tube & metal braid under outer LSZH jacketMicro diameter stainless steel tube for protection High resistance of tensile strength, pressure, rodent bite Without damage by construction Ensure transmission power and avoid additional attenuation Prevent optic fiber from destroy by harsh environment Prevent optic fiber from destroy by improper operation
Applications
FTTH, LAN, Test equipment, Military industry CATV Measuring equipments Fiber optic communication systemOptical active component and equipment

Item information
Fiber: Simplex OM1 62.5/125 Multimode Fiber Optic Cable Connector: ST-MTRJ Connectors at ends Cable Jacket: Armored/Military Tactical OFNR (Riser) Rated Standard Boot on each end Color: Gray
Structures
Each light armored patch cable is inse ed in a protective flexible stainless steel tube as you see in the picture.
Custom OEM
Fiberinthebox offer customization solutions as below: Any Fiber Type- 10G OM4 optical fiber, 10G OM3 optical fiber, Single-mode 9/125 optical fiber, OM1 Multimode 62.5/125 optical fiber and OM2 Multimode 50/125 optical fiber for choice. Any connectors- FC, ST, LC, SC, MTRJ, E2000, MU etc connectors for choice. Any lengths- 1m, 2m, 3m, 4m ...100m... no limits. Label or Logo customs- we can print customer logo on fiber patch cable at this position:


Specifications

Connector Type

ST to MTRJ

Fiber Type

Multimode OM1 62.5/125

Length

3m

Endface Type(nm)

PC

UPC

APC

Insertion Loss(dB)

≤0.20

≤0.20

≤0.30

Repeatability(dB)

≤0.10

Exchangeability(dB)

≤0.20

Return Loss(dB)

≥45

≥50

≥60

Core Diameter

62.5µm ± 2.5µm

Cladding Diameter

125µm ± 1µm

Outer Diameter

3.2mm ± 0.10mm

Max. Attenuation

3.5dB/km @ 850nm
1.5dB/km @ 1350nm

Min Static Bend

10D

Min Dynamic Bend

15D

Tensile Load (long term)

400N

Tensile Load (short term)

400N

Crush (long term)

3000N/100mm

Crush (Short term)

5000N/100mm

Operation Temperature(℃)

-25℃~ +70℃

Storage Temperature(℃)

-40℃~ +85℃

Durability(time)

>1000 times

Industry Standard

Telcordia GR-326-CORE
