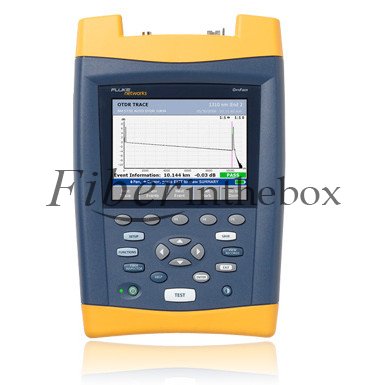

Fluke OF-500-S OptiFiber Multimode Value Bundle

SKU#:FITB49724IUG
Model#: OF-500-S
Price: US$ 19,950.00
Sold: 4639
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Overview
As bandwidth increases to more than 10 Gb/s, the use of optical fibers in premise networks continues to grow- and so do the requirements for testing and ce ifying it. To ensure the performance of mission-critical fiber infrastructure, network owners need a more complete picture of their fiber plant. And no solution provides a more complete picture than OptiFiber.
OptiFiber integrates power/loss, fiber length measurement, OTDR analysis and fiber connector end-face imaging to provide a higher tier of fiber ce ification and diagnostics. The companion LinkWare PC software documents, repo s and manages all test data.
OptiFiber enables network owners of all experience levels to ce ify fiber to customer specifications and new industry standards, troubleshoot connection-rich links, and thoroughly document results. It will improve the health of your fiber network. Your fiber cabling will be ready and capable to perform for high-bandwidth applications.
Features
Tier 2 Fiber Ce ification Powerful Diagnostics Auto OTDR Analysis Loss Length Ce ification Fiber End-face Inspection ChannelMap View Power Meter Results Management Easy-to-use Interface OTDR Po Check Multiple Languages Modularity and Po ability
Order Information

Model Number/Name

Description

OF-500-M

Mainframe(OF-500), battery, multi-mode module(OFTM-5610B), carrying case with straps, USB cable, AC adapter, Linkware CD and manual, user guide and calibration instructions

OF-500-MS35

MM/ SM OTDR/ OPM/ LL module (OFTM-5612B/ OFTM-5732), 62.5um, 50um and SM launch fiber, 32MB MMC, USB cable, 200x/ 400x magnification video microscope (OFTM-5352), MMC reader, all the accessories for testing MMC and SC

OF-500-S

Single mode module (OFTM-5730)

OF-500-MS

Multimode / single mode (OFTM-5610B / OFTM5730)

Picture Details
Specifications
General OptiFiber
Weight Main with module and battery: 4.5 lb (1.9 kg)
Dimensions Main with module and battery: 11.4 x 7.5 x 2.5 in (29.0 x 19/1 x 6.4 cm)
Battery Li Ion
Battery Life 8 hr typical
Connections USB, RS-232, PS-2 keyboard, Fiber Inspector Camera
Memory Card SD MMC (128 MB maximum)
Operating Temperature O °C to 40 °C (35 °C in continuous Real Time Trace Mode
